• Out-of-Stock

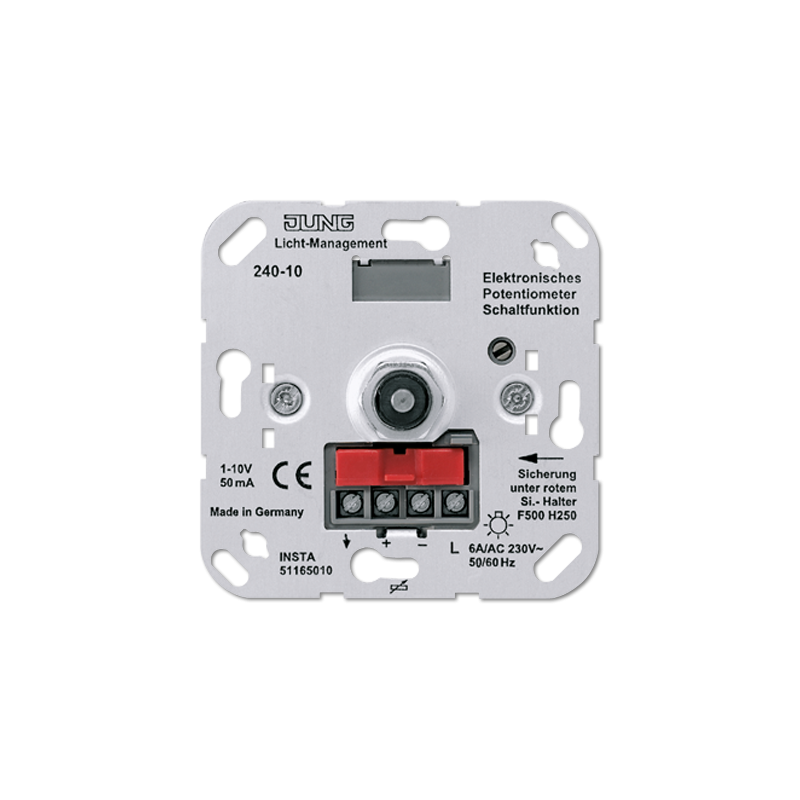

240-10 - MECHANISM JUNG POTENTIOMETER ELECTRONIC SWITCH 6A
    240-10 - MECHANISM JUNG POTENTIOMETER ELECTRONIC SWITCH 6A

MECHANISM JUNG POTENTIOMETER ELECTRONIC SWITCH 6A ref: 240-10

Referencia: 0712100548 Categoría: Body Marca: JUNG
€41.81
VAT included

For Electronic Reactors With Input 1 - 10 V Power of the Feeder: Ac 230 V ~ 50/60 Hz, Max. 6 A With Ohmic Charge

Quantity
Add to wishlist
Out-of-Stock

for electronic ballasts with input 1 - 10 V

Power of the feeder:
AC 230 V ~ 50/60 Hz, max. 6 A with ohmic load

Use as intended

  • Switching and adjustment of the brightness for lamps with functional equipment with inter-face 1-10 V.
  • Mounting in a box for mechanisms according to DIN 49073 li>


Product characteristics b>

  • Potentiometer with switching function for direct switching of both ohmic and inductive loads.
  • Potentiometer with pushbutton function only together with the current impulse switch
  • Adjustable brightness
  • With the potentiometer with pushbutton function, it is possible to carry out the switching through auxiliary stations.
  • Protection of the interface 1-10 V against the wrong connection by means of the integration of a fuse.

Check mark: VDE

Plates:
AS / A series: ref.A 1540 a>..
CD series: ref.CD 1540 a>..
SL Series: ref. SL 1540 ..
LS series: ref.LS 1940 a>.., .. 1940 ..

0712100548

Data sheet

Mechanism component
Body

Specific References

EAN13
4011377416406
