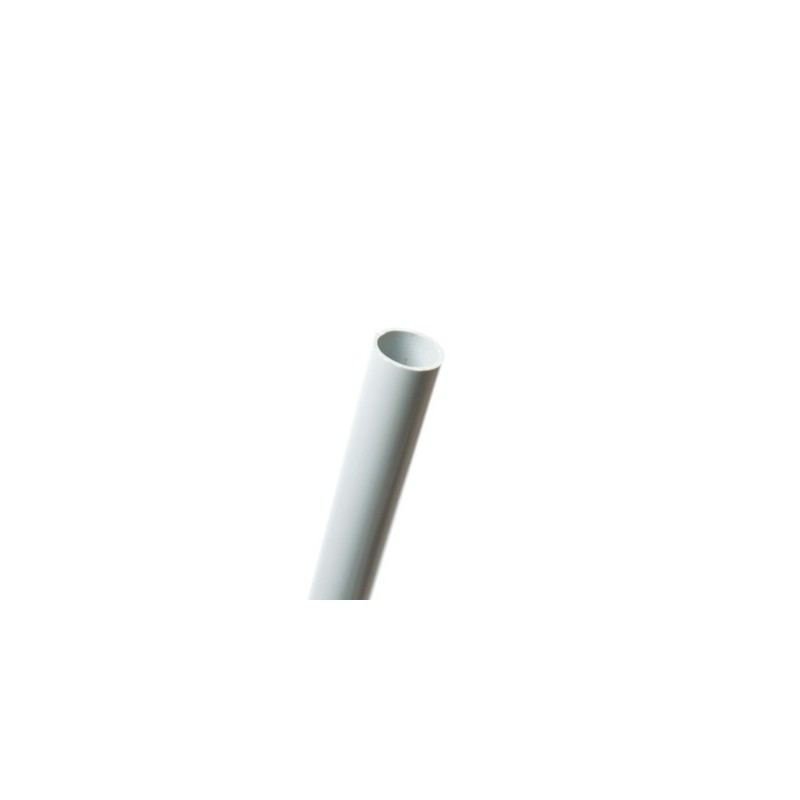

TUBE 25MM HALOGEN-FREE RIGID
    TUBE 25MM HALOGEN-FREE RIGID

25MM HALOGEN-FREE RIGID TUBE

Referencia: 013004605 Categoría: Corrugated Tubes Marca: TUPERSA
€2.76
VAT included

Halogen-free rigid tube 25mmTUB -HALOGEN-FREE RIGID (TUBE 3 MTS))/p>

Quantity
Add to wishlist

The minimum purchase order quantity for the product is 3.

RIGID TUBE FREE OF HALOGENOS

Features

Compression resistance 1250Nw (25% maximum deformation)

Impact resistance >6 Joules (Free Fall at -5oC)

Working temperatures From -5oC to +90oC

"border-bottom-width:medium;border-bottom-style:none;"".Electrical properties Insulating
  • Dielectric rigidity Greater than 2Kv (at 50 Hz)
  • Insulation Greater than 100 Megaohms at 500V

Resistance to flame propagation No flame propagator

Grade protection to penetration of solids and liquids IP grade of External Influences, IP43

Grade of Mechanical Damage Protection Grade 9

Shock energy 20 Joules min

Colors Light Grey

Installation features It will be performed according to rebt instructions

Complies with UNE-EN 61386-1 and UNE-EN 61386-21 and ITC-BT-28 and 29 (REBT)

Public premises and premises at risk of fire and explosion

"margin-top:25px;" "product-type"DIAMETROS16202532405063

Due to the volume of corrugated tubes of this type, they can increase the price of the freight above the usual average of our online store.

013004605
717 Items

Data sheet

Tube Section
25 m/m

Specific References

EAN13
8436029904104
