TUBE 40MM GREY RIGID
    TUBE 40MM GREY RIGID

GREY RIGIDO TUBE - 40 m/m

Referencia: 013003405 Categoría: Corrugated Tubes Marca: TUPERSA
€2.23
VAT included

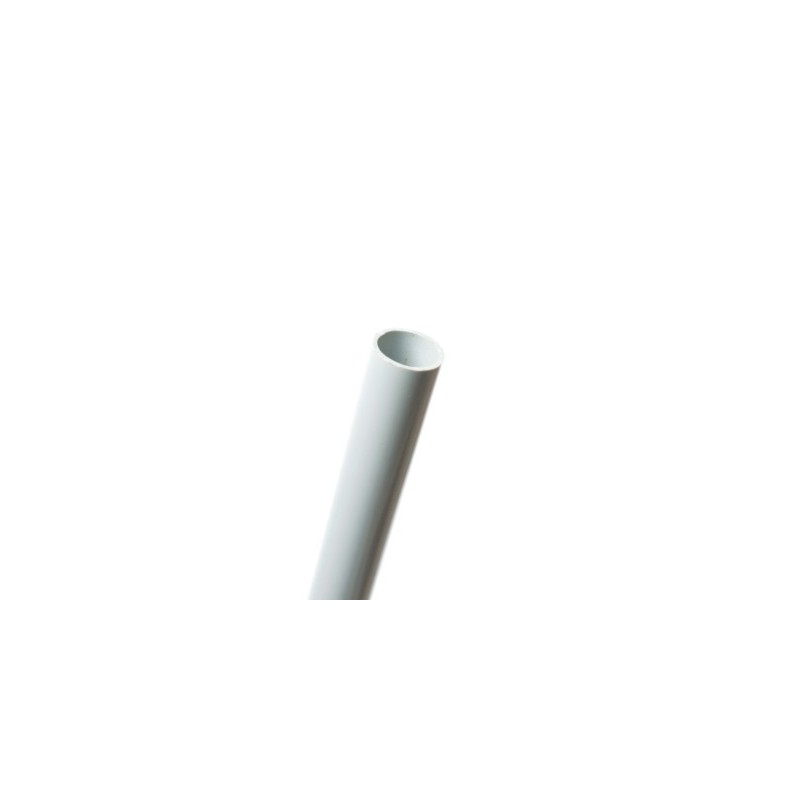

Grey rigid tube 40mm

Quantity
Add to wishlist

The minimum purchase order quantity for the product is 3.

GREY TUBE TUBE 3 MTS

Features

Compression resistance .span>1250 Nw (25% maximum deformation)

Impact resistance 2 Joules (Free Fall at -5oC)

Working temperatures From -5oC to +60oC

Electrical properties .span>Insulation

  • Dielectric rigidity ispan>Older than 2Kv (at 50 Hz)
  • Insulation resistance Greater than 100 megaohms at 500V

Flame Propagation Resistance Non-flame propagator

Degree of protection against mechanical damage Grade 7

Shock energy 6 Julios min

Degree of protection to the penetration of solids and liquids IP grade external influences, IP43

Colors Light Grey and Black

Installation features It will be performed according to the instructions of the REBT

Types Slicing and pluggable

Meets standards UNE-EN 61386-1 and UNE-EN 61386-21

IAMETROS 16 20 25 32 40 50 63

Due to the volume of corrugated tubes of this type, they can increase the price of the freight above the usual average of our online store.

013003405
21 Items

Data sheet

Tube Section
40 m/m

Specific References

EAN13
8436029901868
