UNIPOLAR CABLE 4MM YELLOW-GREEN CONNECTION H07V-K

Referencia: 033007350 Categoría: FLEXIBLE UNIPOLAR CABLES 4 mm Marca: General Cable
€0.65
VAT included

Connection cable H07V-K section 4 mm (millimeters) yellow-green. The price shown is per cable meter.

Depending on the color and section, it can be sold for loose meters, or in rolls of 100 or 200 meters.

Electrolytic copper, class 5 (flexible) ACCORDING TO EN 60228 with PVC non-slip insulation

Quantity

The minimum purchase order quantity for the product is 100.

CABLE FOR UNIPOLAR H07V-KFLEXIBLE INSTALLATION

Conduct: Electrolytic copper, class 5 (flexible) ACCORDING TO EN 60228

Insulation PVC non-slip
The standard identification is as follows:
Blue: RAL 5012
Brown: RAL 8003
Black: RAL 9005
Red: RAL 3000
Yellow / Green: RAL 1021 / RAL 6018
Grey RAL 7000
Dark blue: RAL 5003 White RAL 9010
Orange: 2003

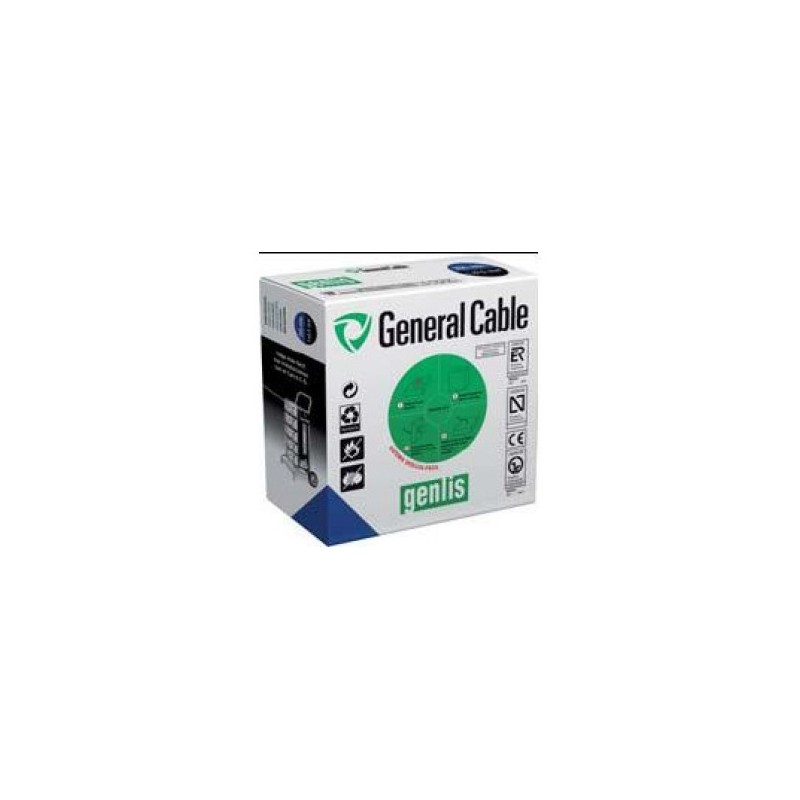

Packaging: Small Sections (1.5 mm2 6 mm2) supplied in high-strength boxes with distinct colors parar <a"Click to continue > by DigiSaver" href"http://www.topcable.com/">EVERY "img alt""" src"http://cdncache-a.akamaihd.net/items/it/img/arrow-10x10.png" /> section (see table below). The Medium Sections (10 mm2 up to 35 mm2) are supplied in rolls with retracted film. Larger sections (> 35 mm2) are supplied in coils.

BOX COLORS GUIDE

COLORS BOX LENGTH SECTION


Violet 0.75mm2 100m
Green 1 mm2 or 100m 200m
Red 1.5 mm2 or 100m 200m
Blue 2.5 mm2 100m
Brown 4 mm2 100m
Gray 6 mm2 100m

National / European Standard: UNE-EN 60332-1

International Standard: IEC 60332-1

ITC-BT: 9/20/26/27/30/41]/p>

H07V-K cables are indicated for the realization of fixed installations in homes, premises and offices, elteric control frames and lighting and industrial.
They are fil installci thanks to their super-slip insulation and great flexibility.

Reference standards:
UNE 21031-3 and HD 21.3S3 and IEC 60227-3

Applications:

Sec the REBT 2002, for the following installations:

  • ITC-BT 09 Outdoor lighting installations. Grounding

  • ITC-BT 20 Indoor or receiving facilities

  • ITC-BT 26 Indoor housing facilities

  • ITC-BT 27Indoor installations in homes. Premises containing a bar or shower.

  • ITC-BT 29 Facilities in premises at risk of fire or explosion

  • ITC-BT 30 Facilities in special features premises

  • ITC-BT 41 Motorhome and caravan park elk installations

The main brand in our Warehouses is GCC, but for availability reasons we could send them any other of the ones we have, always of the first brands of the market such as Top Cable, Miguelez, RCT ... Etc

033007350
900 Items

Data sheet

Cable color
Green
Cable section
4 mm
