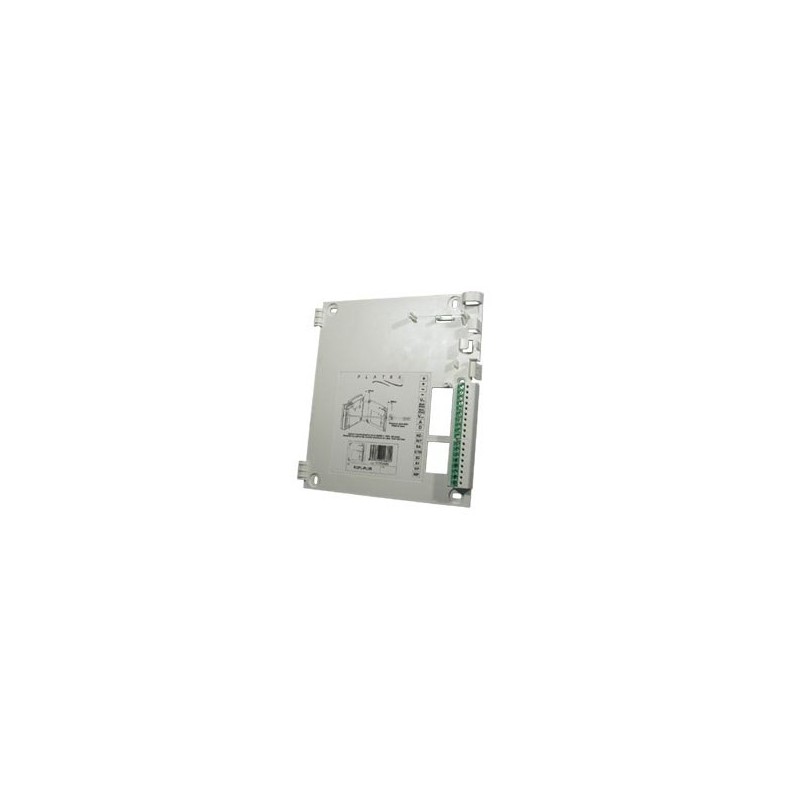

Connection Terminal for Platea Uno Golmar Monitors

• Digital installation "GB2" 2-wire.
• It is necessary to use D2L-GB2 video distributors para la conexión de las unidades interiores.
• Housing made of white ABS plastic.
• Capacitive pushbuttons with acoustic pulsation confirmation.
• Surface installation with only 19mm. depth.
• Includes mounting strip.
• Dimensions: 90(W) x 138(H) x 19(P) mm.
