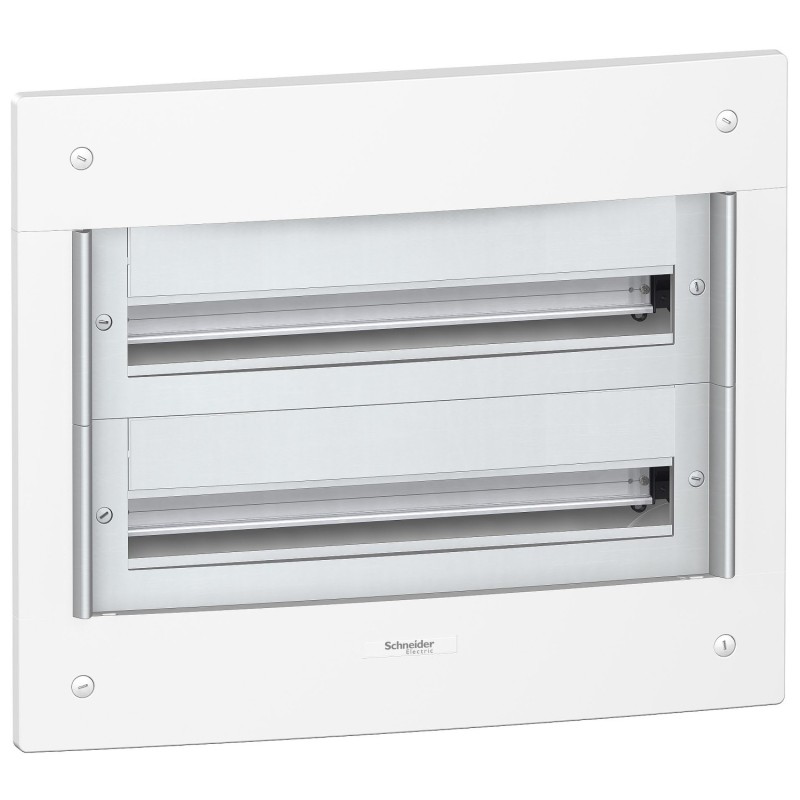

MODULAR BOX 48 PRAGMA ELEMENTS 24 METAL PUSH
    MODULAR BOX 48 PRAGMA ELEMENTS 24 METAL PUSH

AUTOMATIC BOX PRA13832 PRAGMA SCHNEIDER MODULAR 48 METALLIC EMPOTRAR ELEMENTS

Referencia: 0017146640 Categoría: Home Marca: SCHNEIDER ELECTRIC
€301.54
VAT included

Modular doorless box 48 elements pragma 24 metal recessed)/p>

Quantity
Add to wishlist
Last items in stock

PRAGMA 24 PALOTRAR METAL BOX WITHOUT DOOR OF 24 TO 144 ELEMENTS

Presentation

The range includes chests with a width of 13, 18 or 24 modules from 1 to 6 fi las. All of it!/p>

the range can be associated horizontally and vertically.

Easy installation and ample space for wiring/p>

The rounded chassis facilitates cable placement and protects the cables./p>

Fingers.

Pladur Mounting Kit®

Adjustable chassis for wall mounting

The chassis can be adjusted horizontally and in depth. The front panel of the

cofret is always in a horizontal position, regardless of the

position of the back recessed in the wall.

Multiposition DIN rail

2 heights and 2 depths.

Side platylls

To allow cable entry.

cacharroInsulating carving

Automatic switch NG160

It is installed in 24-module enclosures thanks to a dedicated mounting plate.

It can be equipped with a Vigi module and associated with the Polybloc 160.

Removable cable inlet plates

With cuts for the entry of cables or tubes.

Cable or hose entry

Fition pins

They allow a recessed assembly without the need for cement.

Quick Connect Modular Terminal


In the chassis.

Transformable distribution dealer up to 125 A.

In the DIN rail.

Association Kit

Allows cable passage between two associated enclosures.

Hinges

Simple and sturdy, they are easily mounted on the front face of the chest

by rotationN.

Asymmetrical front cover

Adaptable to the position of the DIN rail offering a large area for identification

0017146640
1 Item

Data sheet

Elements
48 elements

Specific References

EAN13
3303432372590
