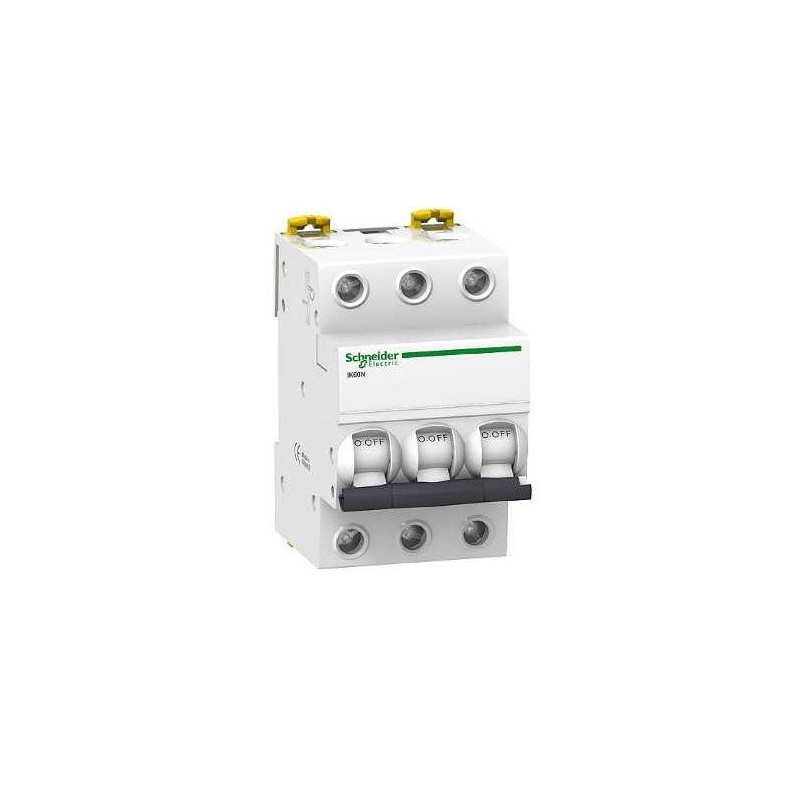

AUTOMATIC 50A MAGNETOTERMICO IK60N 3 POLOS CURVA-C
    AUTOMATIC 50A MAGNETOTERMICO IK60N 3 POLOS CURVA-C

AUTOMATIC MAGNETOTERMICO A9K24350 3P 50A IK60N S CURVA-C SCHNEIDER

Referencia: 0017530991 Categoría: Home Marca: SCHNEIDER ELECTRIC
€104.45
VAT included

Automatic 50th magnetothermal ik60n 3 poles curve-c

Quantity
Add to wishlist
Out-of-Stock

MAGNETOTERMICO 3Pole CURVA-C IK60N

Commercial status Marketed
Device application ./span> Distribution
Range Acti 9
Type of product or component Miniature automatic switch .br />
Product name IK60
Short device name IK60N
Number of poles ./span> 3p
Number of protected poles ./span> 3
Nominal current (In) 6 A at 30 c .br />
Network type Ca
Shooting unit technology ./span> Thermal-magnetic
Curve code C
Cutting power 6000 A Icn in accordance with EN/IEC 60898-1 - 400 V AC 50/60 Hz
6000 A Icn in accordance with EN/IEC 60898-1 - 230 V AC 50/60 Hz
Suitable for sectioning Yes according to EN/IEC 60898-1 )br />
Standards EN/IEC 60898-1
Certifications Aenor
Complementary
Network frequency 50/60 Hz
Magnetic link limit 5...10 x In
[Ics] nominal service cutting power 6000 A 100 % x Icu according to EN/IEC 60898-1 - 400 V AC 50/60 Hz
6000 A 100 % x Icu according to EN/IEC 60898-1 - 230 V AC 50/60 Hz
Limitation class ./span> 3according to EN/IEC 60898-1
[Ui] rated insulation voltage 440 V AC 50/60 Hz in accordance with EN/IEC 60898-1
[Uimp] rated voltage supported at impulse ./span> 4 kV in accordance with EN/IEC 60898-1
Type of control Handle
Local signage ./span> On/Off indication .br />
Mounting mode Clip-adjustable
Mounting bracket DIN Rail
9 mm steps 6
Height 85 mm
Width 54 mm
Depth 78.5 mm
Product weight 300g
de colores White
Mechanical endurance/span> 20000 cycles
Electrical durability 10000 cycles
Description of the locking options ./span> Lock-lock closing device
Connections - terminals Tunnel terminal, up or down Flexible wiring(s) 1...16 mm2 max
Tunnel-type terminal, rigid up or down wired(s) 1...25 mm2 max
Cable length uncovered 14 mm up or down
Tightening torque 2 N.m up or down
Ground Leak Protection Without
Environment
IP degree of protection i/span> IP20 in accordance with IEC 60529
degree of contamination 2 in accordance with EN/IEC 60898-1
Overvoltage category span class'"level1>> III
> Ambient working temperature -25...60 'C
> Ambient storage temperature -40...85 'C
The supply's sustainability
Sustainable supply status > Green Premium Product
RoHS (date code: AASS) Compliant - since 1001 - Schneider Electric declaration of conformity Statement of Conformity of Schneider Electric
Reach The reference does not contain SVHC over the threshold
Product environmental profile Available
Instructions for end-of-life of the product It does not require specific operations for recycling.br />

0017530991

Data sheet

Poles
3 Poles
Amperage
50 Amp
Brand
Schneider

Specific References

EAN13
3606480086830
