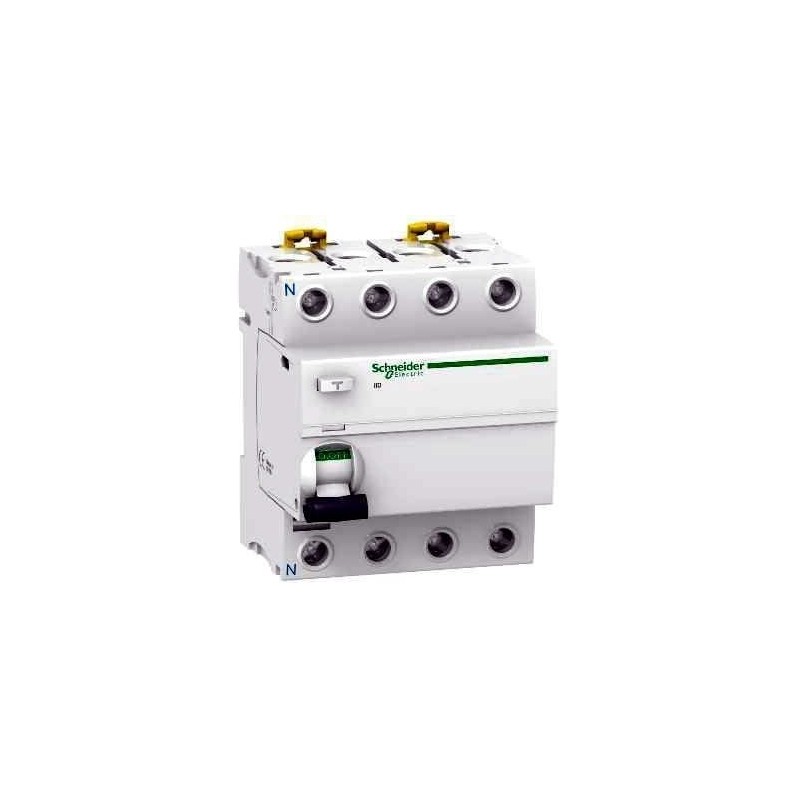

DIFFERENTIAL 4 P 25A, 30 MA A9R81425 CLASS-AC SCHNEIDER

Referencia: 0017185610 Categoría: Home Marca: SCHNEIDER ELECTRIC
€169.09
VAT included

Iid differential 4 poles25a, 30 milliamps class-ac

Quantity
Last items in stock

DIFFERENTIAL iID 4P CLASS-AC

Standard AC Class and Class A iID Differential Switches

General features

AENOR certified product in accordance with UNE-EN 61008

• Immunity against untimely shots: 250 A crest for the instants and 3 kA crest for the selective, according to wave 8/20 s.

• VisiTrip: local defect signaling.

• Short-circuit resistance:

Nc IC 10 kA.

M IM 630 A (IN? 63 A).

M IM • 10 IN (I

• Connection using copper cable box terminals:

"left" "p align"left"Rigid: up to 50 mm]/span>2.

• Width per pole: 2 steps of 9 mm.

• Operating voltage:

iID 2p: 230 V AC.

iID 4p: 400V AC (between phases).

VisiSafe:

Fully apparent cut: green band on the lever.

Insulation voltage (Ui) 500 V AC.

Pollution Grade 3.

Impulsial voltage (Uimp) 6 kV.]/span>

• Double isolation class 2.

• Support identical auxiliaries and accessories as the iC60.

AC class. Detects alternating leakage currents.

Class A. Detects alternating and alternating leakage currents

Class B. Detects alternating leakage currents

0017185610
1 Item

Data sheet

Poles
4 Poles
Amperage
25 Amp
Miliamperes
30 ma
Brand
Schneider
