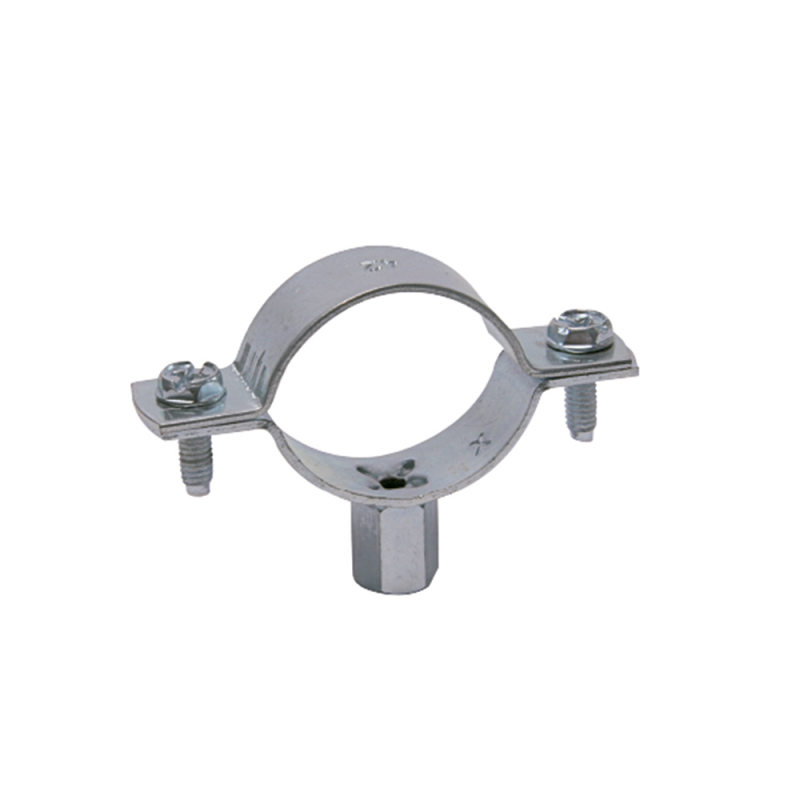

Metal reinforced clamp d.40-42
    Metal reinforced clamp d.40-42

Metal reinforced clamp d.40-42

Referencia: 0048008725 Categoría: Home Marca: CELO APOLO
€1.48
VAT included

APOLO reinforced clamp M8+M10, nut with cross welding. Hexagonal screw with imprint ph+slot and PVC washer to prevent falling screws during clamp opening. Made of zinc-plated steel.

Quantity
Add to wishlist
Out-of-Stock

Denom.ReferenceDiameter (mm)Length (mm)Tube diameter to be fixed (mm)Height (mm)Clamp Thickness (mm)Units x
R 200 9200R 200 242.5 200 227.5 2.3 40
R 160 9160R 160 202.5 160 187.5 2.3 40
R 140 9140R 140 178.5 140 163.5 2.3 50
R 125 9125R 125 166.5 125 151.5 2.3 50
R 110 9110R 110 148.5 110 133.5 1.8 50
R 100 9100R 100 140.5 100 125.5 1.8 50
R 90 990R 90 127.5 90 112.5 1.8 50
R 75 975R 75 115.5 75 100.5 1.8 50
R 63 963R 63 99.5 63 84.5 1.8 50
R 60 960R 60 93.5 60 78.5 1.8 50
R 50 950R 50 86.5 50 71.5 1.8 100
R 40 940R 40 78.5 40 63.5 1.8 100
R 35 935R 35 72.5 35 57.5 1.8 100
R 28 928R 28 65.5 28 50.5 1.8 100
R 22 922R 22 60.5 22 45.5 1.8 100
R 18 918R 18 54.5 18 39.5 1.8 100
0048008725

Data sheet

Tube Section
40 m/m
Type Fixation
Clamps and Staples

Specific References

EAN13
8421814009812
