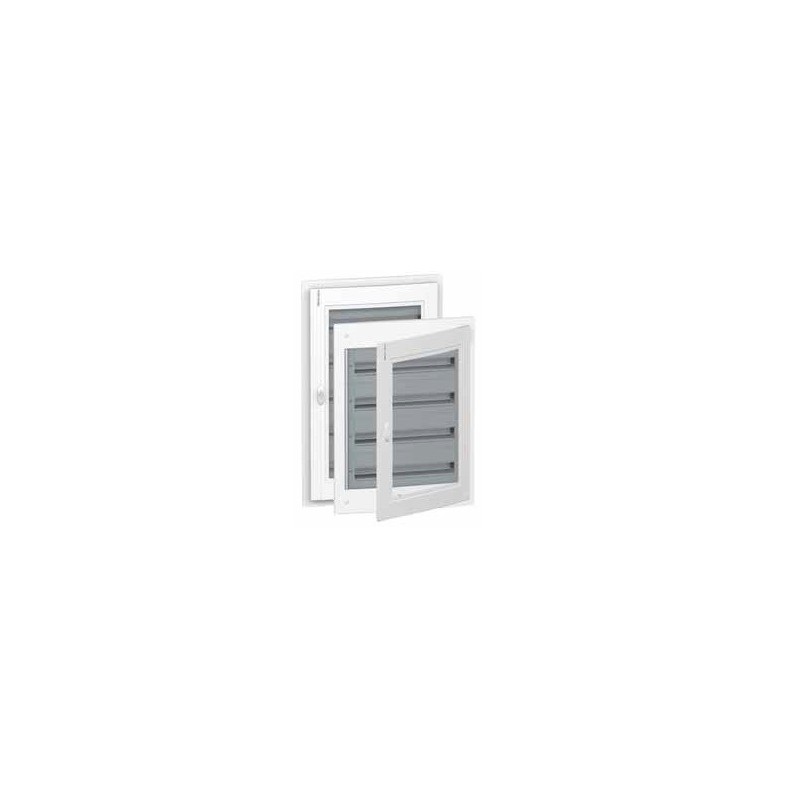

PRAGMA MODULAR BOX 18 EMPOTRAR

Presentation

The range includes chests with a width of 13, 18 or 24 modules from 1 to 6 fi las. All of it!/p>

the range can be associated horizontally and vertically.

Easy installation and ample space for wiring/p>

The rounded chassis facilitates cable placement and protects the cables./p>

Fingers.

Pladur Mounting Kit®

Adjustable chassis for wall mounting

The chassis can be adjusted horizontally and in depth. The front panel of the

cofret is always in poregardless of the one'/p>

position of the back recessed in the wall.

Multiposition DIN rail

2 heights and 2 depths.

Side platylls

To allow cable entry.

cacharroInsulating carving

Automatic switch NG160

It is installed in 24-module enclosures thanks to a dedicated mounting plate.

It can be equipped with a Vigi module and associated with the Polybloc 160.

Removable cable inlet plates

With cuts for the entry of cables or tubes.

Cable or hose entry

Fition pins

They allow a recessed assembly without the need for cement.

Quick Connect Modular Terminal

In the chassis.

Transformable distribution dealer up to 125 A.

In the DIN rail.

Association Kit

Allows cable passage between two associated enclosures.

Hinges

Simple and sturdy, they are easily mounted on the front face of the chest

by rotationN.

Asymmetrical front cover

Adaptable to the position of the DIN rail offering a large area for identification
