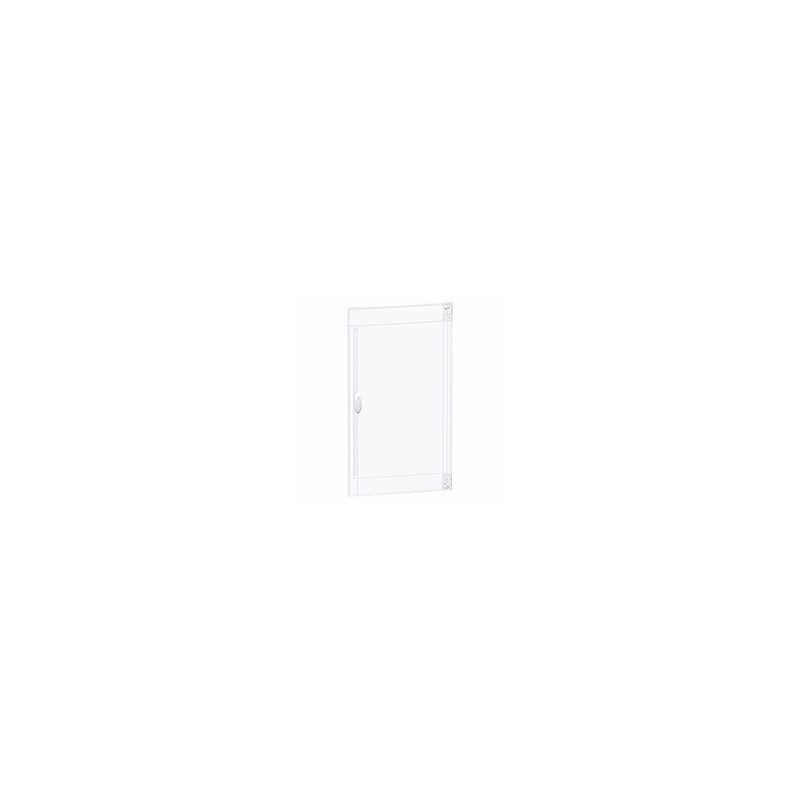

DOOR 18 PRAGMA ELEMENTS 18 SUPERFICIE AND WHITE
    DOOR 18 PRAGMA ELEMENTS 18 SUPERFICIE AND WHITE

PRAGMA DOOR PRA16118 SCHNEIDER 18 WHITE ELEMENTS,

Referencia: 0017146840 Categoría: Home Marca: SCHNEIDER ELECTRIC
€16.78
VAT included

Door 18 elements pragma 18 surface and white recessed

Quantity
Add to wishlist
Last items in stock

PRAGMA DOOR 18 SUPERFICIE AND EMPOTRA

Complementary

Cabinet Mounting Built-in

Surface

Number of keys Number to indicate

Smoked cover type

Door opening side Right or left

Number of horizontal rows 1/2/3

Number of 18 mm modules per row 18

Total number of 18 mm modules 18

Installation Description Wall box + 2 ducts

Surface mounting

Technoplastic Envelope Material<<

Width 426 mm

Height 300 mm

Depth 20 mm

Color Smoke

Environment

Standards IEC 60439-3

Fire resistance 750oC

Degree of protection IP IP40 in accordance with IEC 60529

Degree of protection IK IK09 in accordance with EN/IEC 62263

Working ambient temperature -25...60oC)/p>

0017146840
1 Item

Data sheet

Elements
18 elements

Specific References

EAN13
3303432359133
