Grapa metálica de acero F d.25
Grapa metálica de acero F d.25
    Grapa metálica de acero F d.25
    Grapa metálica de acero F d.25

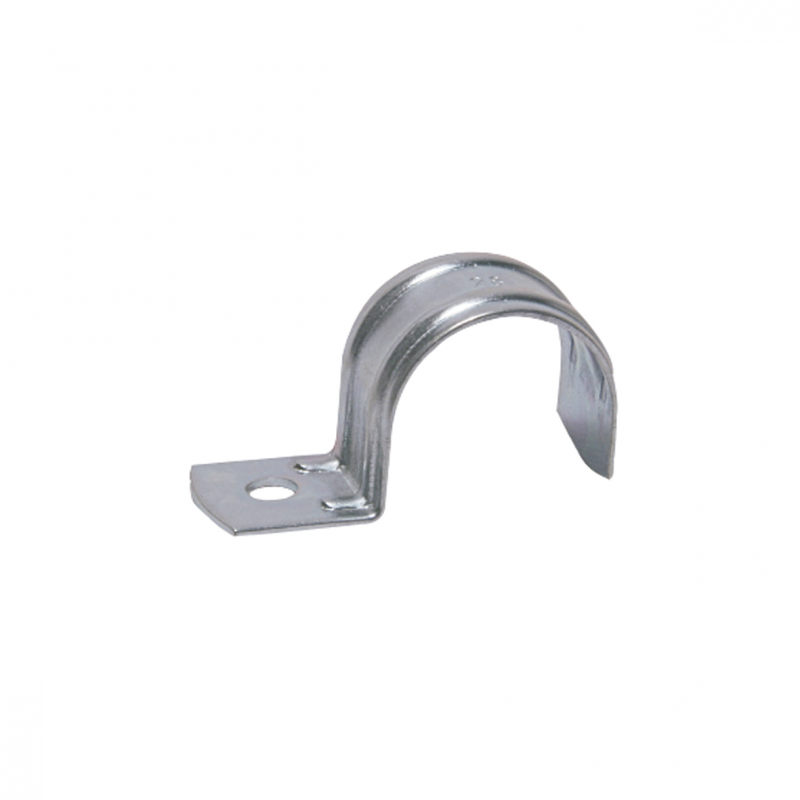

Steel metal clip F d.25

Referencia: 0048013774 Categoría: Home Marca: CELO APOLO
€0.19
VAT included

APOLO steel metal clip reinforced with two nerves to the base..../p>

Quantity
Add to wishlist
Out-of-Stock

Double nerve that reaches the base, offering greater resistance to start-up

High corrosion resistance zinc-plated steel

Direct fixation with bump plug or DA metal heel

Through hole of 6.5 mm/p>

Supports recommended loads up to 12 Kg safety factor included.

Application area

cable

PVC tube

Multilayer tube

Steel tube

Plastic tube

Suitable for base materials such as:

Beam

Concrete

Concrete block

Solid brick

Download:

tds_f.pdf

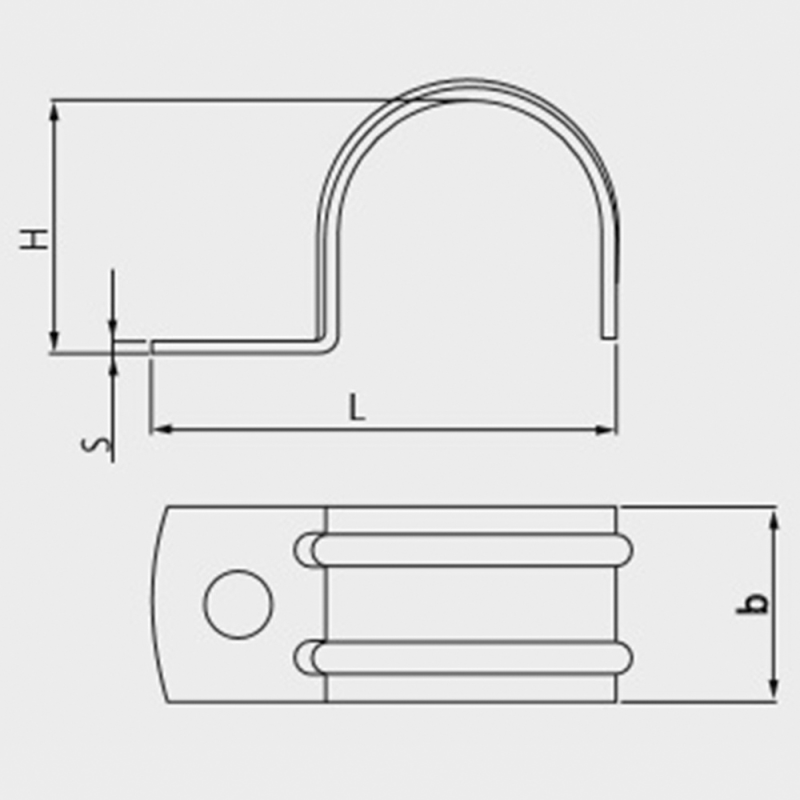

Denom.ReferenceDiameter (mm)Length (mm)Tube diameter to be fixed (mm)Height (mm)Clamp Thickness (mm)Units x
F 8 98F 8 23.8 8 9.4 0.8 100
F 22 922F 22 40.7 22 23.9 1.2 100
F 8 96F 6 21.8 6 7.4 0.8 100
F 63 963F 63 84.5 63 65.3 1.5 25
F 50 950F 50 71.5 50 52.3 1.5 50
F 40 940F 40 61.5 40 42.3 1.5 50
F 32 932F 32 53.5 32 34.3 1.5 100
F 28 928F 28 46.7 28 29.9 1.2 100
F 26 926F 26 44.7 26 27.9 1.2 100
F 25 925F 25 437 25 26.9 1.2 100
F 20 920F 20 38.7 20 21.9 1.2 100
F 18 918F 18 35.5 18 19.6 1 100
F 16 916F 16 33.5 16 17.6 1 100
F 14 914F 14 31.5 14 15.6 1 100
F 12 912F 12 27.8 12 13.4 0.8 100
F 10 910F 10 26 10 11.4 0.8 100
0048013774

Data sheet

Tube Section
25 m/m
Type Fixation
Clamps and Staples

Specific References

EAN13
8421814101783
