Manufactured with high durability halogen-free plastic materials, they are available in a range of 10 to 125 Amps and 24 to 500 Volts, with protection grades IP44-IP54-IP67
Materials: Plastic parts in polyamide. Contacts in cinder copper alloy. Halogen-free plastic materials. VDE Certified

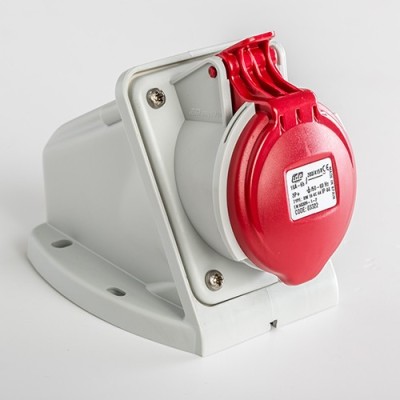

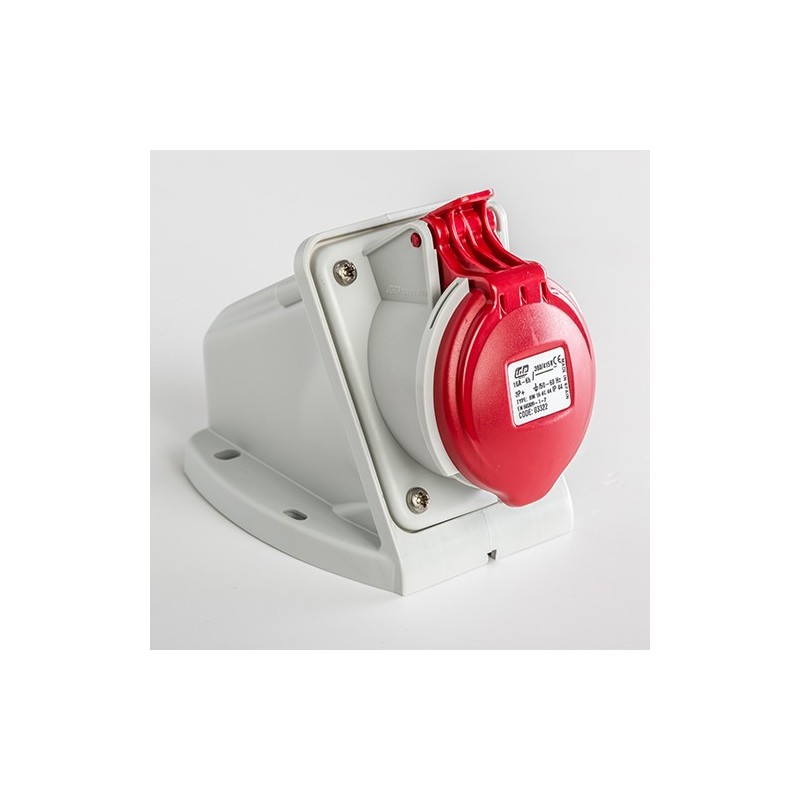

Bm. IP44 16A 3P+N+T 200/346 240/145V 6H Manufactured with high durability halogen-free plastic materials, they are available in a range of 10 to 125 Amps and 24 to 500 Volts, with protection grades IP44-IP54-IP67
Materials: Plastic parts in polyamide. Contacts in cinder copper alloy. Halogen-free plastic materials. VDE Certified
Download data sheet |
Data sheet |
Intensity (A) |
16 (A) |
Poles |
3P+N+T |
Voltage (V) |
200/346-240/415 |
Hour code |
6 |
de colores |
R |
Degree of protection |
IP44 |
Impact resistance |
IK08 |
Incandescent yarn resistance |
960 oC |
Ball pressure |
125 oC |
Ambient temperature range |
-25 oC / +40 oC |
