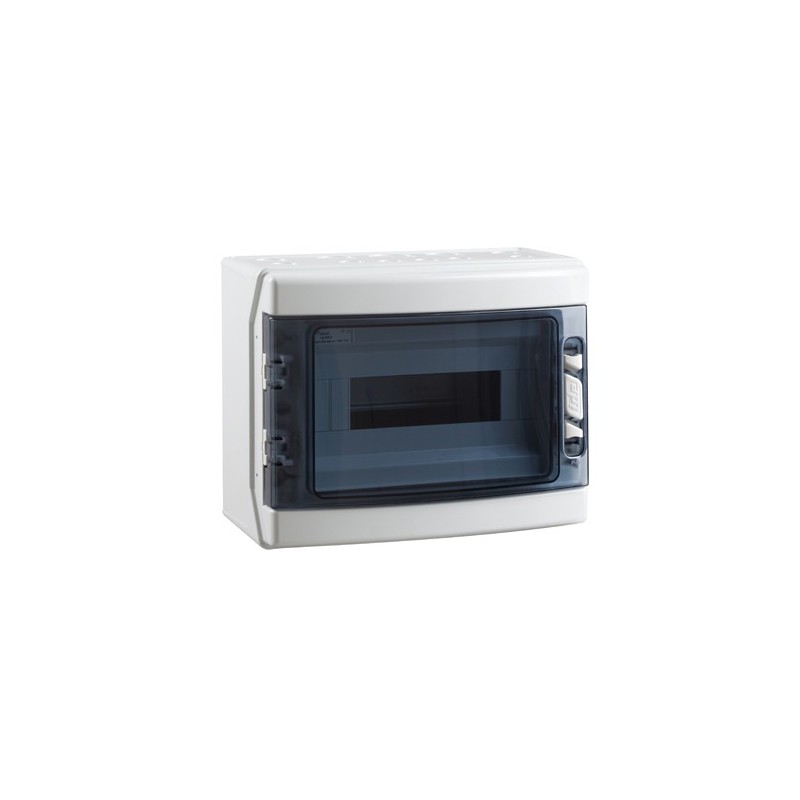

SURFACE BOX IP65 1x12 MODULES .ABS GR.TP
€35.39
VAT included
Watertight distribution boxes IP65. Wide range of plastic enclosures for the industrial, tertiary and residential sectors. Manufactured with high durability materials free of halogens and UV protection in transparent windows.
Technical data h3>
| Degree of protection td> | IP65 |
| Impact resistence | IK08 |
| Incandescent wire resistance | |
| ABS | 650 ºC td> |
| Polycarbonate | 750 ºC td> |
| Ball pressure td> | 70 ºC td> |
| Ambient temperature range | -25 ºC / +40 ºC |
| Maximum employment stress | 1000 V AC / 1500 V DC |
| Double insulation | Class II |
Certifications
According to the low voltage directive 2014/35 / EU.
Standards: UNE-EN 62208 and IEC 62208.
Standards: UNE-EN 62208 and IEC 62208.
materials
ABS version: Halogen-free plastic materials.
Base and frame ABS gray color RAL7035.
Transparent PC color smoked window with UV protection.
Polycarbonate Version: Halogen-free plastic materials.
PC base and frame color gray RAL7035.
Transparent PC fumé color window, with UV protection (Recommended for outdoor use: UV protection according to ISO 4892-2 method A: 1000h).
Base and frame ABS gray color RAL7035.
Transparent PC color smoked window with UV protection.
Polycarbonate Version: Halogen-free plastic materials.
PC base and frame color gray RAL7035.
Transparent PC fumé color window, with UV protection (Recommended for outdoor use: UV protection according to ISO 4892-2 method A: 1000h).
Supply
Supplied in individual packing.
The multiple packagings are formed by wrapping the individual packagings with transparent film.
TH35x7 symmetric rail.
5 in envelope of a row of modules and compact frame in envelope of two or more rows of modules.
They are supplied mounted on all references.
The multiple packagings are formed by wrapping the individual packagings with transparent film.
TH35x7 symmetric rail.
5 in envelope of a row of modules and compact frame in envelope of two or more rows of modules.
They are supplied mounted on all references.
0208035420
11 Items
Specific References
- EAN13
- 8431044129679
