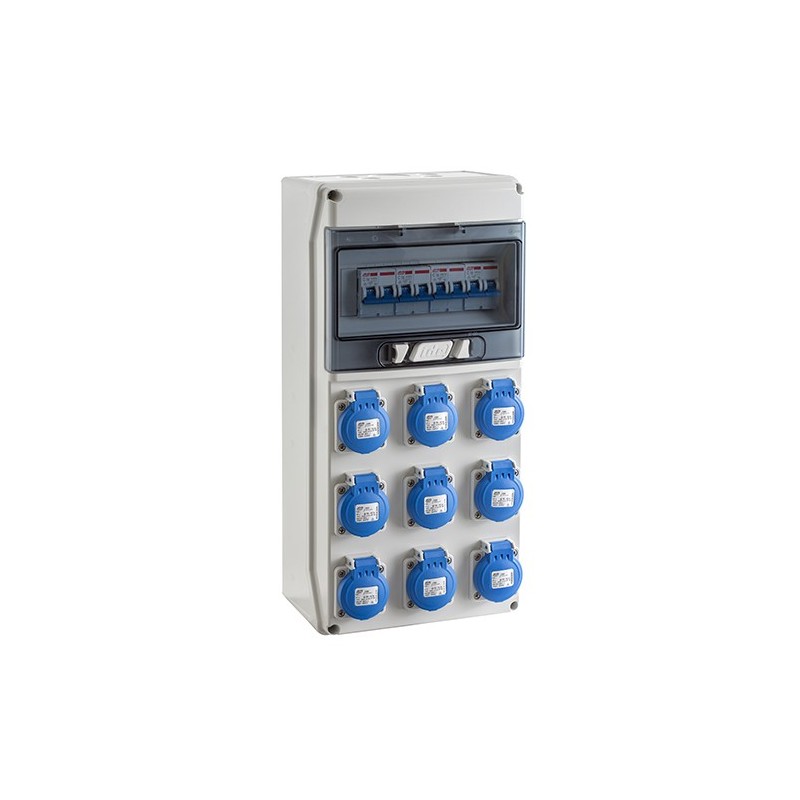

SURFACE BOX SV9100 IDE 1X9 MODULES WITH IP65 POWER SOCKETS
€153.77
VAT included
composed of 2 bases (IP44 3P + T 16A 380V) and 2 bases (IP54 2P + TT 16A 220V)
Cofrets for IP65 power sockets. Wide range of plastic enclosures for the industrial, tertiary and residential sectors. Manufactured with high durability materials free of halogens and UV protection in transparent windows.
Technical data h3>
| Degree of protection td> | IP65 |
| Impact resistence | IK08 |
| Incandescent wire resistance | 650 ºC td> |
| Ball pressure td> | 70 ºC td> |
| Ambient temperature range | -25ºC / 40ºC |
| Maximum employment stress | 1000 V AC / 1500 V DC |
| Double insulation | Class II |
Certifications
According to the low voltage directive 2014/35 / EU.
Standards: UNE-EN 62208 and UNE-EN 61439-1 (in the part that affects).
Standards: UNE-EN 62208 and UNE-EN 61439-1 (in the part that affects).
materials
Plastic materials free of halogens.
Body: ABS color RAL7035.
Transparent window: PC fumé color, with UV protection.
Body: ABS color RAL7035.
Transparent window: PC fumé color, with UV protection.
Supply
Supplied in individual cardboard packaging.
Multiple packages conform toby wrapping the individual packages with transparent film.
The enclosure is supplied with the windows assembled in the cover and the hinges assembled in the base, leaving the cover completely free to facilitate the manipulation by the installer.
The rails are supplied mounted on all references.
For boxes with power sockets it is supplied completely assembled according to the specifications of each reference, protected with a retractable plastic and inserted in a multiple cardboard packaging according to the number of units requested.
Multiple packages conform toby wrapping the individual packages with transparent film.
The enclosure is supplied with the windows assembled in the cover and the hinges assembled in the base, leaving the cover completely free to facilitate the manipulation by the installer.
The rails are supplied mounted on all references.
For boxes with power sockets it is supplied completely assembled according to the specifications of each reference, protected with a retractable plastic and inserted in a multiple cardboard packaging according to the number of units requested.
0208008219
Data sheet
- Elements
- 9 elements
Specific References
- EAN13
- 8431044153513
