DINUY LADDER MINUTER MI.EL.3003
€28.11
VAT included

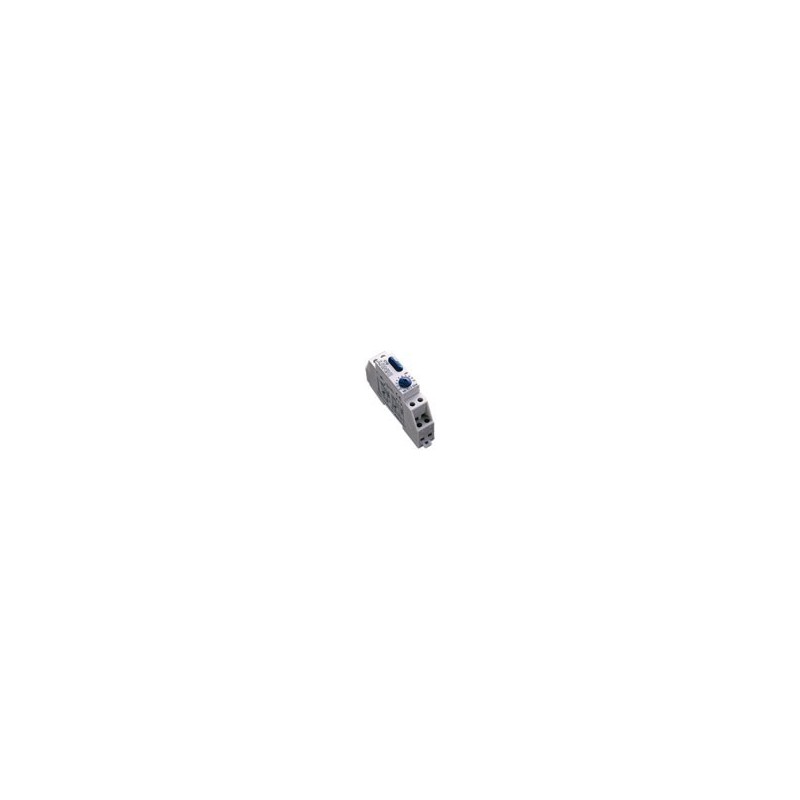

DINUY LADDER MINUTER MI.EL.3003
MINUTER OF LADDER DINUY MOD. EL3003 1M 16AMPERIOS
| Supply voltage | 230V ~ 50Hz | |||
| Installation | 3 threads | 3 or 4 threads | ||
| Load | 16A / 250V ~ | |||
| Incandescence | 3000W | |||
| Halogen 230V | 3000W | |||
| Halogen MBT transfo electronic | 3000W | |||
| Halogen MBT transfo ferromagnetic | 2400W | |||
| Fluorescence | 1300W (130mF) / 3600W (C = 0) | |||
| Energy saving lamps | 18x7W, 12x11W, 10x15W, 10x20W, 10x23W | |||
| Timing | 30sec - 10min | 2min - 40min | 30sec - 10min | 30sec - 12min |
| Pulsadore luminous | Maximum 100mA | |||
| Permanent lighting | YES | |||
| Warning of shutdown | DO NOT | YES | ||
| Contact material | AgSnO2 | |||
| Tª operation | -10ºC ~ + 50ºC | |||
| Protection | IP20 | |||
012111028
64 Items
Data sheet
- Mounting
- Carril DIN
- MODULOS
- 1 Modulo
- Articulo
- Temporizadores
Specific References
- EAN13
- 8422447005172
