A-10. Aislador de doble polo
    A-10. Aislador de doble polo

A-10. Double-pole isolator

Referencia: A10 Categoría: Home Marca: VARILAMP
€17.38
VAT included

Completely prevent some LED lamps from becoming a bit lit when disconnected. One pickup is installed per zone or electrical circuit, before the first lamp. EFFECTIVENESS 100%.

Quantity
Add to wishlist
Last items in stock

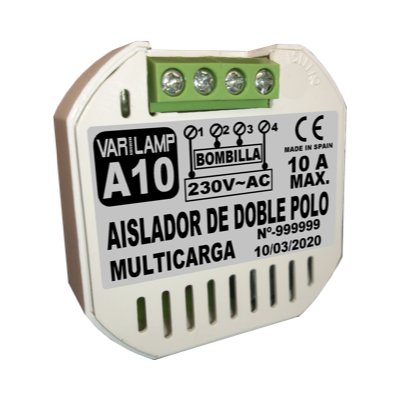

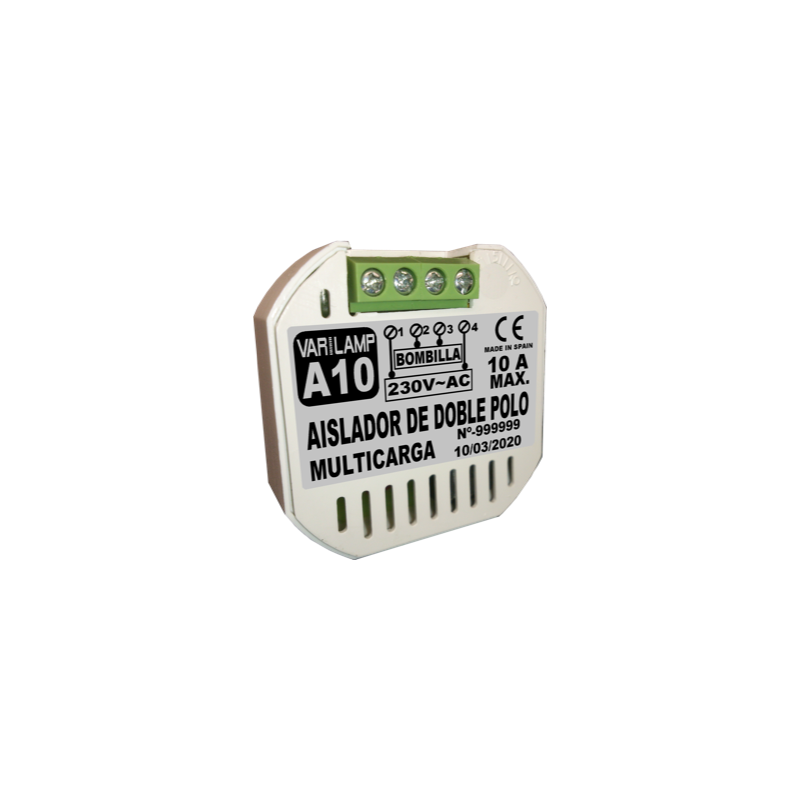

Double-Pole Varilamp A10 Isolator

Double pole insulator that COMPLETELY AVOIDS that some LED lamps (fluor, low power consumption, etc.) are a little on when turned off from the switch.

Control: By switch.

Operation: When the switch is activated, the load is switched. Disconnecting the switch disconnects the load from the two network poles, leaving it completely isolated from the network. This TOTALLY AVOIDs any possibility of residual ignition.

Installation and use recommendations: Installs by interspersing it before the first bulb. One pill per room, area or electrical circuit. In communities it will be necessary to install one A10 per floor (if all lamps are on the same circuit).

Compatible exclusively with pilotless and non-pilot switches and multi-load timers that require no minimum load.



Technical details:



Supply voltage 230V/AC
Consumption 0.2W
Frequency 50Hz
Housing ABS VO (fireproof) white
Warranty 30 months (from date engraved on product)
Dimensions 47 x 47 x 14mm
Weight 37g
Power Max. 0W to 2000W (R). All kinds of loads. MULTILOADS
Internal work ta No heat: Incorporates 16A relays
Degree of protection IP30
Packing Cardboard box with hanger
Certifications CE, RoHS
According to rules: UNE-EN 55015/A1/A2; UNE-EN 61547/A1; UNE-EN 60669-1/A1/Err; UNE-EN 60669-2-1



A10
3 Items

Data sheet

Mounting
Recessed
Articulo
Aislador de polos

Specific References

EAN13
8437017937203
