• Out-of-Stock
DIFFERENTIAL IID 4 POLOS 63A, 30 MILIAMPERS CLASS-AC
    DIFFERENTIAL IID 4 POLOS 63A, 30 MILIAMPERS CLASS-AC

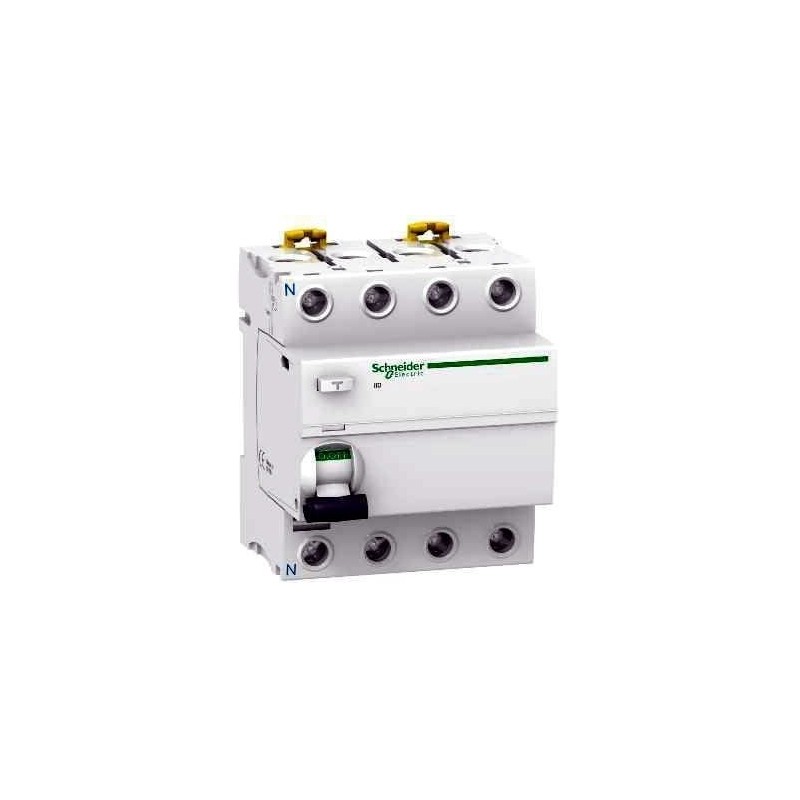

DIFFERENTIAL 4P 63A 30 MA A9R81463 CLASS-AC SCNEIDER

Referencia: 0017185634 Categoría: Home Marca: SCHNEIDER ELECTRIC
€381.36
VAT included

Iid differential 4 poles 63a, 30 milliamps class-ac

Quantity
Add to wishlist
Out-of-Stock

DIFFERENTIAL iID 4P CLASS-AC

Standard AC Class and Class A iID Differential Switches

General features

AENOR certified product in accordance with UNE-EN 61008

• Immunity against untimely shots: 250 A crest for the instants and 3 kA crest for the selective, according to wave 8/20 s.

• VisiTrip: local defect signaling.

• Short-circuit resistance:

• ⅠNc IC 10 kA.

• ⅠM IM 630 A (IN? 63 A).

• ⅠM IM • 10 IN (I

• Connection using copper cable box terminals:

"left"• "p align"left"• Rigid: up to 50 mm]/span>2.

• Width per pole: 2 steps of 9 mm.

• Operating voltage:

• iID 2p: 230 V AC.

• iID 4p: 400V AC (between phases).

VisiSafe:

• Fully apparent cut: green band on the lever.

• Insulation voltage (Ui) 500 V AC.

• Pollution Grade 3.

• Impulsial voltage (Uimp) 6 kV.]/span>

• Double isolation class 2.

• Support identical auxiliaries and accessories as the iC60.

AC class. Detects alternating leakage currents.

Class A. Detects alternating and alternating leakage currents

Class B. Detects alternating leakage currents

0017185634

Data sheet

Poles
4 Poles
Amperage
63 Amp
Miliamperes
30 ma
Brand
Schneider

Specific References

EAN13
3606480392535
