    Hit taco for through fastening NP/6-40 d.6x40mm
    Hit taco for through fastening NP/6-40 d.6x40mm
    Hit taco for through fastening NP/6-40 d.6x40mm
    Hit taco for through fastening NP/6-40 d.6x40mm
    Hit taco for through fastening NP/6-40 d.6x40mm
    Hit taco for through fastening NP/6-40 d.6x40mm
    Hit taco for through fastening NP/6-40 d.6x40mm

Hit taco for through fastening NP/6-40 d.6x40mm

Referencia: 0048047274 Categoría: Home Marca: CELO APOLO
€0.11
VAT included

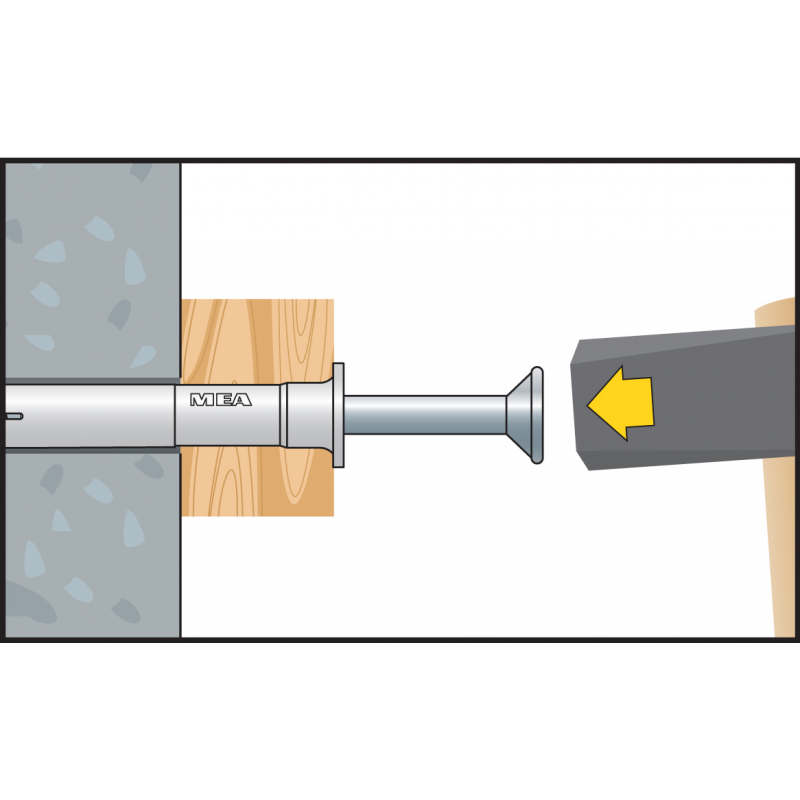

The NP shock plug from Apollo MEA is suitable for quick assembly of gutters, slats, preframes, profiles, etc. The exact match between plug and screw offers high clamping values. Reinforcement at the head of the plug to prevent it from breaking when inserting the screw. Screws with PZ imprint that allows to unscrew and remove the fixation. It withstands temperatures between -40oC to +80oC. It is presebta in acerp and A2 stainless steel materials. In box format and in blister.

Quantity
Add to wishlist
Out-of-Stock

The special shock stud for quick assembly of gutters, slats, preframes, profiles, etc./p>

The exact match between plug and screw offers high clamping values

Reinforcement at the head of the plug to prevent it from breaking when inserting the screw

Screws with PZ imprint that allows to unscrew and remove the fixation

Supports temperatures between -40oC to +80oC

Application area

Gutters

U-profiles

Sockets

Slats

Perforated tape

Profiles

Plates

Suitable for base materials such as:

Concrete

Natural stone

Solid brick

Hollow brick

Concrete block

Plaster blocks

Perforated bricks

Cell concrete

Download:

l_np_npc_load_table.pd

tds_npc.pd

tds_np.pdf



Denom.ReferenceHole Diameter (mm)Length (mm)Screw materialCoatingAnchor Depth (mm)Hole Depth (mm)Thickness to be fixed (mm)Units x
NP 8-80 9X880NP 8 80 inox a2 - 40 50 40 50
NP 8-60 9X860NP 8 60 stainless steel a2 - 40 50 20 50
NP 6-80 9X680NP 6 80 stainless steel a2 - 30 40 50 50
NP 6-60 9X660NP 6 60 stainless steel a2 - 30 40 30 50
NP 6-40 9X640NP 6 40 stainless steel a2 - 30 40 10 100
NP 5-50 9X550NP 5 50 stainless steel a2 - 25 35 25 100
NP 5-35 9X535NP 5 35 stainless steel a2 - 25 35 10 100
NP 6-80 9680NP 6 80 Steel Galvanized 30 40 50 50
NP 6-70 9670NP 6 70 Steel Galvanized 30 40 40 50
NP 6-60 9660NP 6 60 Steel Galvanized 30 40 30 50
NP 6-50 9650NP 6 50 Steel Galvanized 30 40 20 50
NP 6-40 9640NP 6 40 Steel Galvanized 30 40 10 100
NP 6-35 9635NP 6 35 Steel Galvanized 30 40 5 100
NP 5-50 9550NP 5 50 Steel Galvanized 25 35 25 100
NP 5-35 9535NP 5 35 Steel Galvanized 25 35 10 100
NP 5-25 9525NP 5 25 Steel Galvanized 23 25 2 200
RT 4-25 9425RT 4 25 Steel Galvanized 20 25 2 100
NP 8-135 98135NP 8 135 Steel Galvanized 40 50 95 50
NP 8-120 98120NP 8 120 Steel Galvanized 40 50 80 50
NP 8-100 98100NP 8 100 Steel Galvanized 40 50 60 50
NP 8-80 9880NP 8 80 Steel Galvanized 40 50 40 50
NPC 8-60 9860NP 8 60 Steel Galvanized 40 50 20 50
NPC 6-80 9680NPC 6 80 Steel Galvanized 30 40 50 50
NPC 6-60 9660NPC 6 60 Steel Galvanized 30 40 30 50
NPC 6-50 9650NPC 6 50 Steel Galvanized 30 40 20 50
NPC 6-40 9640NPC 6 40 Steel Galvanized 30 40 10 100
NPC 6-35 9635NPC 6 35 Steel Galvanized 30 40 5 100
NPC 5-50 9550NPC 5 50 Steel Galvanized 25 35 25 100
NPC 5-35 9535NPC 5 35 Steel Galvanized 25 35 10 100
0048047274

Data sheet

Type Fixation
Tacos

Specific References

EAN13
4001990515051
