Metal anchor shirt with expander cone and hexagonal screw DYNABOLT TORN.10x60mm ACE. Zinc.
€0.31
VAT included

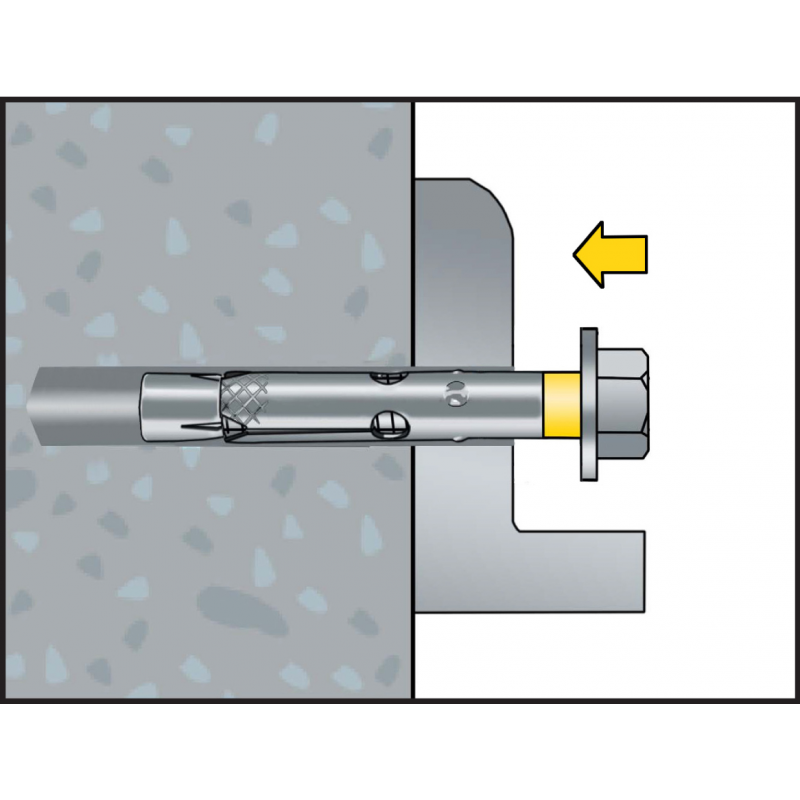

The metal anchor with Apollo MEA DT expander jacket and hex screw is suitable for through bindings in medium loads. CE approved anchorage for non-cracked concrete. Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole. In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone.
The metal anchor with expander jacket and hexagonal screw is suitable for through bindings in medium loads
Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole
In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone
It comes in a professional box and mini boxes for sporadic consumption./p>
Application area
Metal profiles
Railings
Streetlights
Suitable for base materials such as:
Concrete
Solid brick
Downloads:
eta_apolomea_dnbolt_eta_15-0508_en.pdf
ddp_dnbolt_sleeve_anchor_15-0508_en.pdf
| Denom. | Reference | Hole Diameter (mm) | Length (mm) | Anchor Depth (mm) | Hole Depth (mm) | Thickness to be fixed (mm) | Units x |
|---|---|---|---|---|---|---|---|
| DT 26-130 | 926130DT | 26 | 130 | 80 | 105 | 30 | 8 |
| DT 21-110 | 921110DT | 21 | 110 | 65 | 85 | 30 | 10 |
| DT 16-110 | 916110DT | 16 | 110 | 55 | 75 | 40 | 25 |
| DT 16-80 | 91680DT | 16 | 80 | 55 | 55 | 10 | 40 |
| DT 14-100 | 914100DT | 14 | 100 | 43 | 70 | 40 | 50 |
| DT 14-70 | 91470DT | 14 | 70 | 43 | 70 | 10 | 50 |
| DT 12-100 | 912100DT | 12 | 100 | 43 | 70 | 40 | 50 |
| DT 12-70 | 91270DT | 12 | 70 | 43 | 70 | 10 | 50 |
| DT 11-80 | 91180DT | 11 | 80 | 37 | 55 | 30 | 75 |
| DT 11-60 | 91160DT | 11 | 60 | 37 | 55 | 10 | 100 |
| DT 10-80 | 91080DT15 | 10 | 80 | 37 | 55 | 30 | 15 |
| DT 10-80 | 91080DT | 10 | 80 | 37 | 55 | 30 | 100 |
| DT 10-60 | 91060DT20 | 10 | 60 | 37 | 55 | 10 | 20 |
| DT 10-60 | 91060DT | 10 | 60 | 37 | 55 | 10 | 100 |
| DT 9-60 | 9960DT | 9 | 60 | 30 | 45 | 20 | 150 |
| DT 9-45 | 9945DT | 9 | 45 | 30 | 45 | 5 | 250 |
| DT 8-60 | 9860DT30 | 8 | 60 | 30 | 45 | 20 | 30 |
| DT 8-60 | 9860DT | 8 | 60 | 30 | 45 | 20 | 200 |
| DT 8-45 | 9845DT50 | 8 | 45 | 30 | 45 | 5 | 50 |
| DT 8-45 | 9845DT | 8 | 45 | 30 | 45 | 5 | 250 |
0048053527
65 Items
Data sheet
- Type Fixation
- Tacos
Specific References
- EAN13
- 8425586497556
