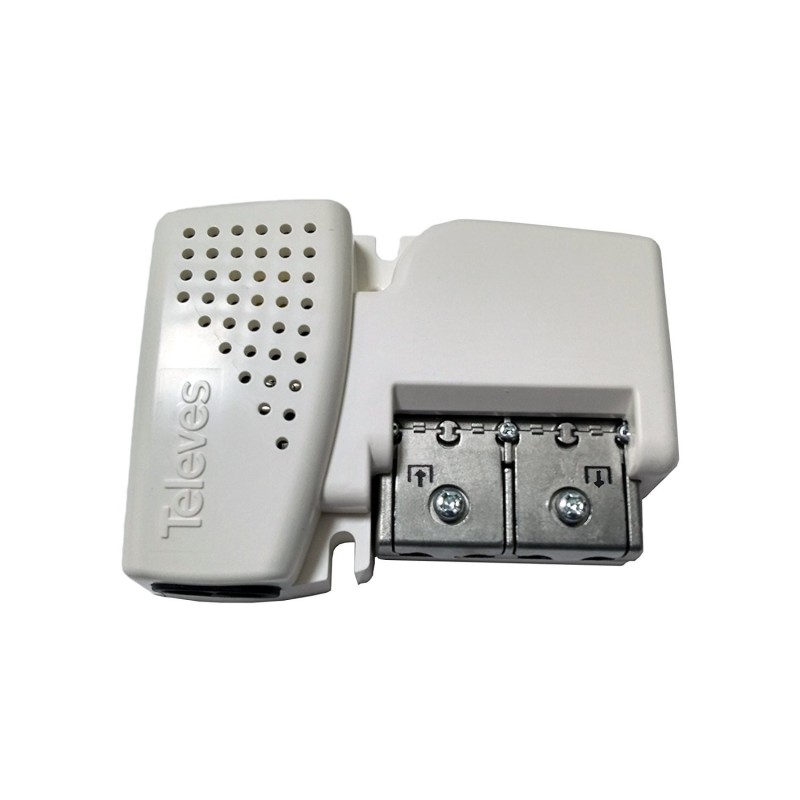

Power Supply PicoKOM 12V / 220mA FI-MIX Easy F
€32.68
VAT included
High-performance switched source. Up to 40% less consumption
- Switched sourceof great performance. Up to 40% less consumption. li>
- Aesthetic and design Extra-reduced size (86x65x26 mm). Installable in boxes of 100x100 mm.
- Screw-inon the wall. li>
- Connection system easyF strong>. Easy assembly, respecting the minimum bending radius of the coaxial cables.
| References | 5796 td> | |||||||
| Departures | No. td> | one | ||||||
| Frequency margin | Mhz | 5-2500 td> | ||||||
| Insertion losses | using 1 output (MAIN / -) | dB | MATV: ≤ 1 | |||||
| using 2 outputs (MAIN / AUX) | SAT IF: 1.5 tip. | |||||||
| Mains voltage (50/60 Hz) td> | Vac | 196-264 | ||||||
| Output voltage td> | Vdc | 12 td> | ||||||
| Output current | mA | 220 td> | ||||||
| Connection type | easyF td> | |||||||
| T ª work environment td> | ºC td> | -10 ... +45 td> | ||||||
| Protection index td> | IP td> | 20 td> | ||||||
| Dimensions | mm td> | 86 x 65 x 26 td> | ||||||
0187024926
3 Items
Specific References
- EAN13
- 8424450140949
