INTERRUPTOR HORARIO TERMINAL MICRO 0 CANAL
    INTERRUPTOR HORARIO TERMINAL MICRO 0 CANAL

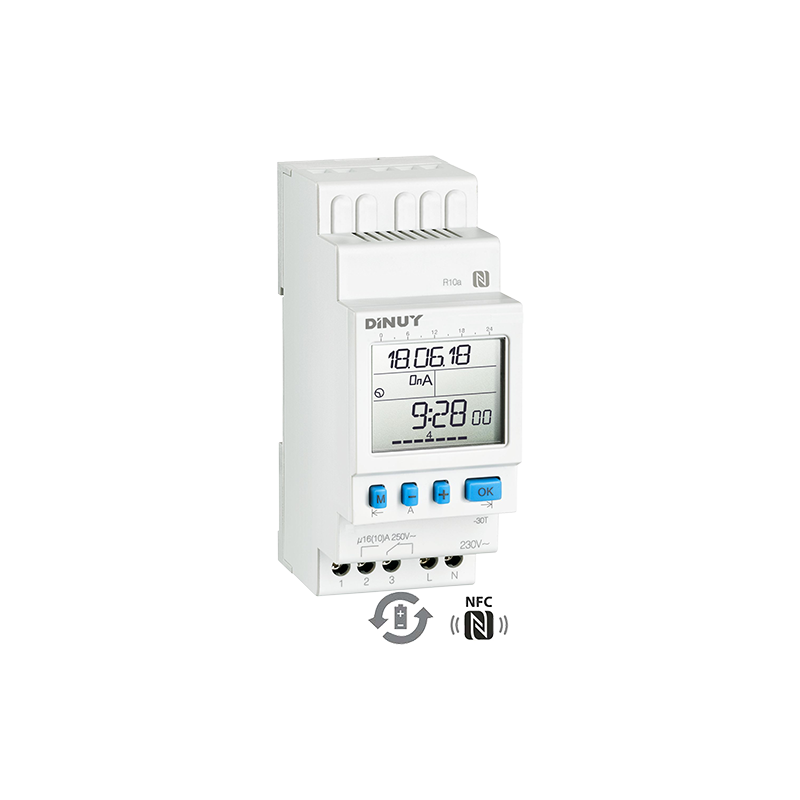

DAILY DIGITAL TIME SWITCH-WEEKLY TERMINAL MICRO 0 CHANNEL

Referencia: 012110113 Categoría: Programmers and detectors Marca: DINUY
€78.14
VAT included

Two width modules, daily and weekly programming, minimum maneuver 1 second. Automated summer/winter time change. An output channel, with power reserve up to 10 years. 56 maneuvers,

Quantity
Add to wishlist
Last items in stock

  • Two width modules

  • Daily and weekly programming/li>

  • Minimum manoeuvre: 1sec

  • Automatic summer/winter time change

  • An exit channel

  • With 10-year power reserve!/li>

  • 56 manoeuvres

Instructions

-

TECHNICAL SHEET
-
"et_pb_button_module_wrapper et_pb_button_1_wrapper et_pb_button_alignment_ et_pb_module">

-

TECHNICAL FEATURES

"height:598px;"

IH TER MC0(170 410)

IH TER MC1(172 411)

IH TER MC2(172 421)

IH TER MC5(172 110)

Supply voltage

230VTM 50-60Hz

Own consumption

0.2- 1W - 0.2 – 1W 0.7W

Programming

Daily/Weekly

No manoeuvres

56 - 56 30

Minimum

1 minute (programmable pulse 1 to 59sec)

No Channels

1 2 1

Accuracy of the march

< .1seg/day (at 20oC)

Power Booking

-6 years

Connection

Contacts

Agni

Cutting power

16A / 250V-cosj-1

Incandescence

1000w

Halogens<3)/strong>

1000w

Uncompensated fluorescence

500va

Serial-compensated fluorescence

500va

Fluorescence compensated in parallel

300va

Discharge Mercury without compensating

2 x 125W, 1 x 250W

Offload Mercury compensated in parallel

3x50W (7mF), 2x125 (10mF), 1x250 (18mF)

Discharge Sodium without compensating

1 x 150W

Low conventional reactance consumption

500va

Low electronic reactance consumption

2 electronic reactances

Box

Extinguishable thermoplastic<

Screen

LCDResolution now./td>

Mounting

In DIN rail 46277

Type of protection

IP20 according to DIN EN 60529

Protection class

II if installed according to the standards

Ambient

-30oC +55oC

Dimensions

35 x 90 x 63mm 17.5x90x63mm

Accessories

– TA PRO 003: programming key –

Dimensions

INSTALLATION SCHEMES

NFC PROGRAMMING

This device can be programmed using a Smartphone that has a system
Android operating and NFC wireless communication technology.
To do this, follow these steps:
1 – Download the App from the Play Store. To do this, look for the word "dinuy" or "ih
programmer" in the Play Store, or access with the reading of the following QR code.
/>
2 – Open the downloaded Application "IH Programmer".
3 – Select the communication option: NFC.
4 – Enter the desired maneuvers.
5 – If you are programming an Astronomical clock, indicate the location medium:
· País y Código Postal
· Coordenadas (Manual)
· Coordenadas (GPS del Smartphone)
6 – Move the Smartphone closer to the device.
7 – After a few seconds, the device will be programmed and ready for its
Operation.
012110113
1 Item

Specific References

EAN13
8422447006063
