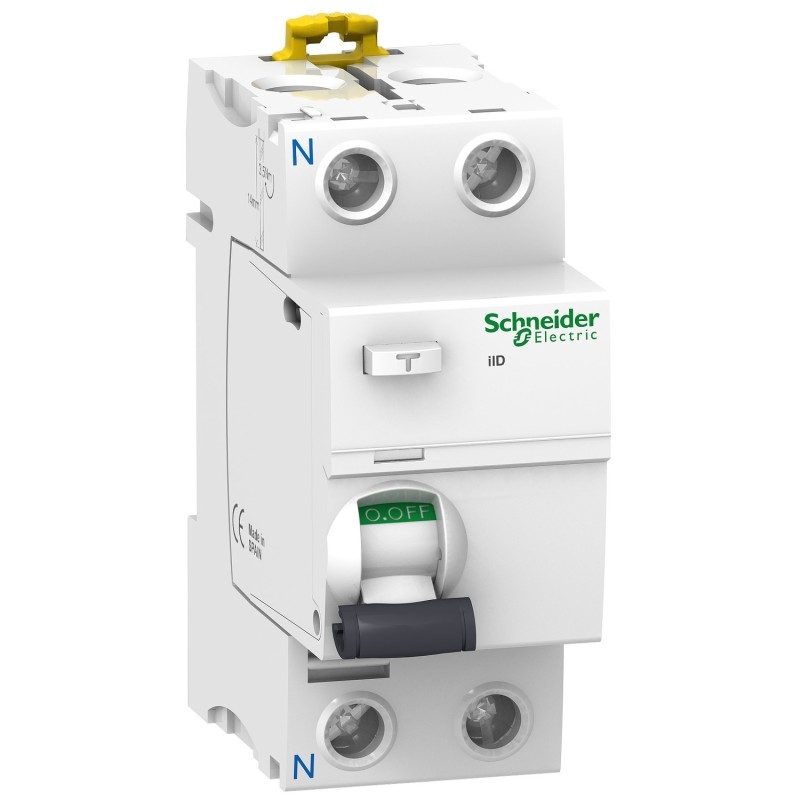

DIFFERENTIAL 2 P 25A 300MA IUNULATED A9R84225 CLASS-AC SCNEIDER

Referencia: 0017185641 Categoría: Home Marca: SCHNEIDER ELECTRIC
€95.14
VAT included

Differential idd 2 poles 25a 300ma ac 6ka immunized class-ac

Quantity
Add to wishlist
Last items in stock

DIFFERENTIAL IDD 2P CLASS-AC

iID differential switches

AC class and standard Class A

General features

AENOR certified product in accordance with UNE-EN 61008

• Immunity against untimely shots: 250 A crest

for the instants and 3 kA crest for selectives,

8/20 s. wave./p>

• VisiTrip: local defect signaling.

• Short-circuit resistance:

Nc IC 10 kA.

M IM 630 A (In ? 63 A).

M IM • 10 In

• Connection using copper cable box terminals:

"left" "p align"left"Rigid: up to 50 mm]/span>2.

• Width per pole: 2 steps of 9 mm.

• Operating voltage:

iID 2p: 230 V AC.

iID 4p: 400V AC (between phases).

0017185641
1 Item

Data sheet

Poles
2 Poles
Amperage
25 Amp
Miliamperes
300 ma
Brand
Schneider

Specific References

EAN13
3606480392443
