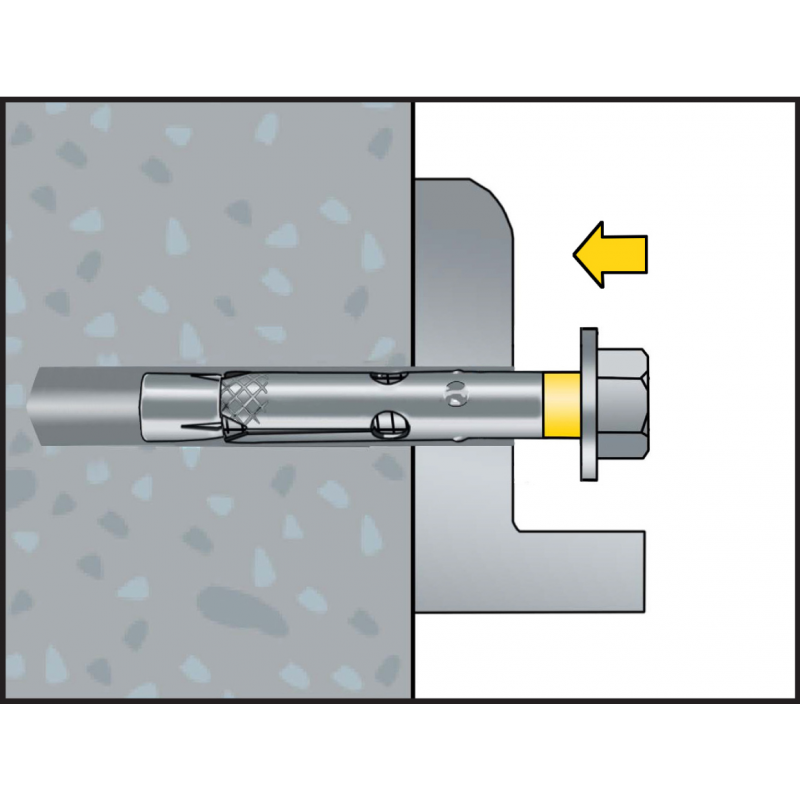

The metal anchor with Apollo MEA DT expander jacket and hex screw is suitable for through bindings in medium loads. CE approved anchorage for non-cracked concrete. Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole. In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone.
The metal anchor with expander jacket and hexagonal screw is suitable for through bindings in medium loads
Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole
In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone
It comes in a professional box and mini boxes for sporadic consumption./p>
Metal profiles
Railings
Streetlights
Concrete
Solid brick
eta_apolomea_dnbolt_eta_15-0508_en.pdf
ddp_dnbolt_sleeve_anchor_15-0508_en.pdf

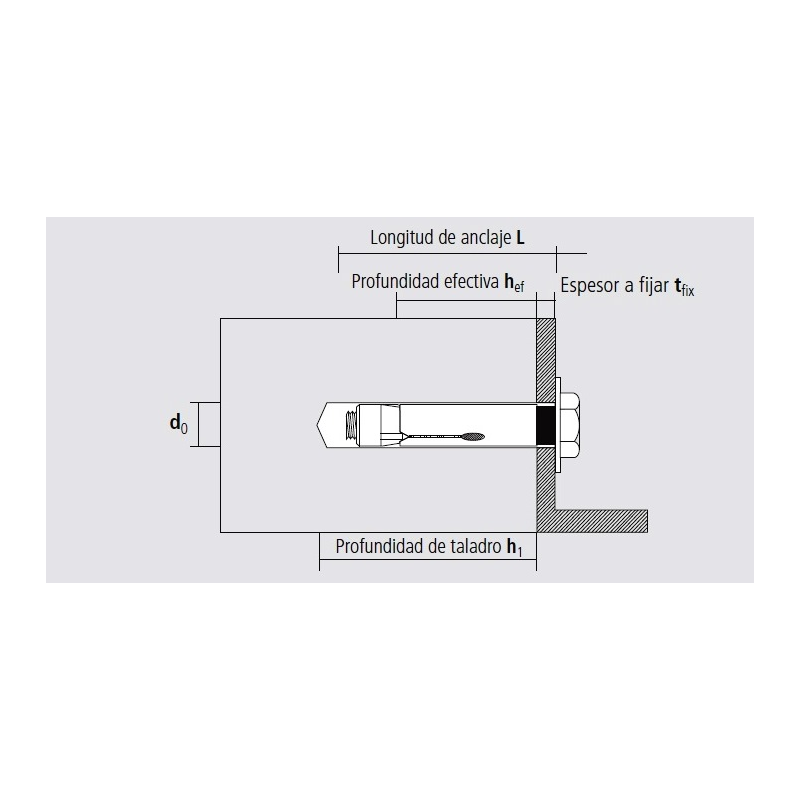

| Denom. | Reference | Hole Diameter (mm) | Length (mm) | Anchor Depth (mm) | Hole Depth (mm) | Thickness to be fixed (mm) | Units x |
|---|---|---|---|---|---|---|---|
| DT 26-130 | 926130DT | 26 | 130 | 80 | 105 | 30 | 8 |
| DT 21-110 | 921110DT | 21 | 110 | 65 | 85 | 30 | 10 |
| DT 16-110 | 916110DT | 16 | 110 | 55 | 75 | 40 | 25 |
| DT 16-80 | 91680DT | 16 | 80 | 55 | 55 | 10 | 40 |
| DT 14-100 | 914100DT | 14 | 100 | 43 | 70 | 40 | 50 |
| DT 14-70 | 91470DT | 14 | 70 | 43 | 70 | 10 | 50 |
| DT 12-100 | 912100DT | 12 | 100 | 43 | 70 | 40 | 50 |
| DT 12-70 | 91270DT | 12 | 70 | 43 | 70 | 10 | 50 |
| DT 11-80 | 91180DT | 11 | 80 | 37 | 55 | 30 | 75 |
| DT 11-60 | 91160DT | 11 | 60 | 37 | 55 | 10 | 100 |
| DT 10-80 | 91080DT15 | 10 | 80 | 37 | 55 | 30 | 15 |
| DT 10-80 | 91080DT | 10 | 80 | 37 | 55 | 30 | 100 |
| DT 10-60 | 91060DT20 | 10 | 60 | 37 | 55 | 10 | 20 |
| DT 10-60 | 91060DT | 10 | 60 | 37 | 55 | 10 | 100 |
| DT 9-60 | 9960DT | 9 | 60 | 30 | 45 | 20 | 150 |
| DT 9-45 | 9945DT | 9 | 45 | 30 | 45 | 5 | 250 |
| DT 8-60 | 9860DT30 | 8 | 60 | 30 | 45 | 20 | 30 |
| DT 8-60 | 9860DT | 8 | 60 | 30 | 45 | 20 | 200 |
| DT 8-45 | 9845DT50 | 8 | 45 | 30 | 45 | 5 | 50 |
| DT 8-45 | 9845DT | 8 | 45 | 30 | 45 | 5 | 250 |
Data sheet
