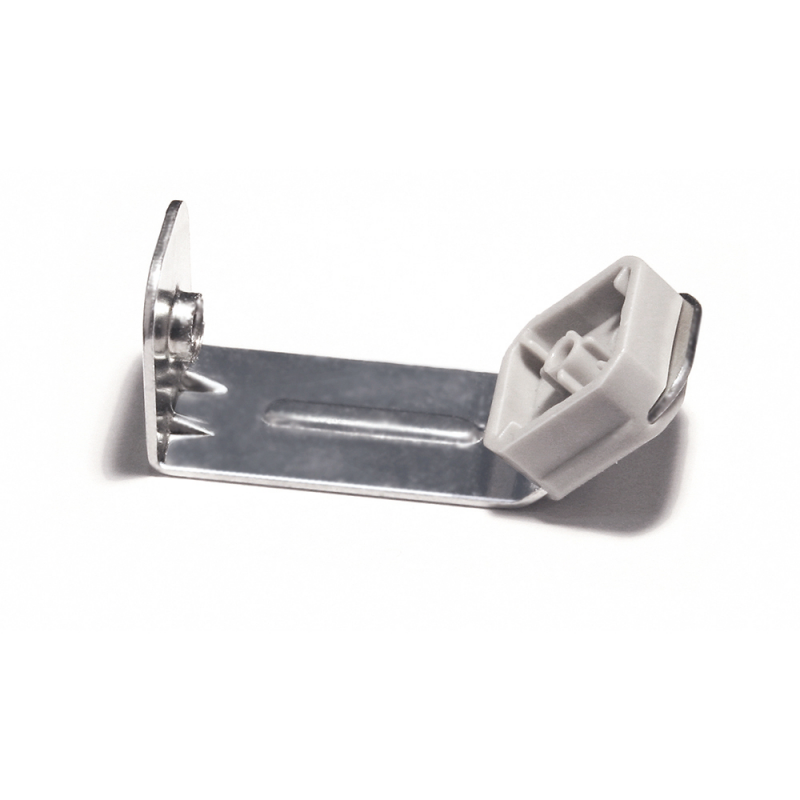

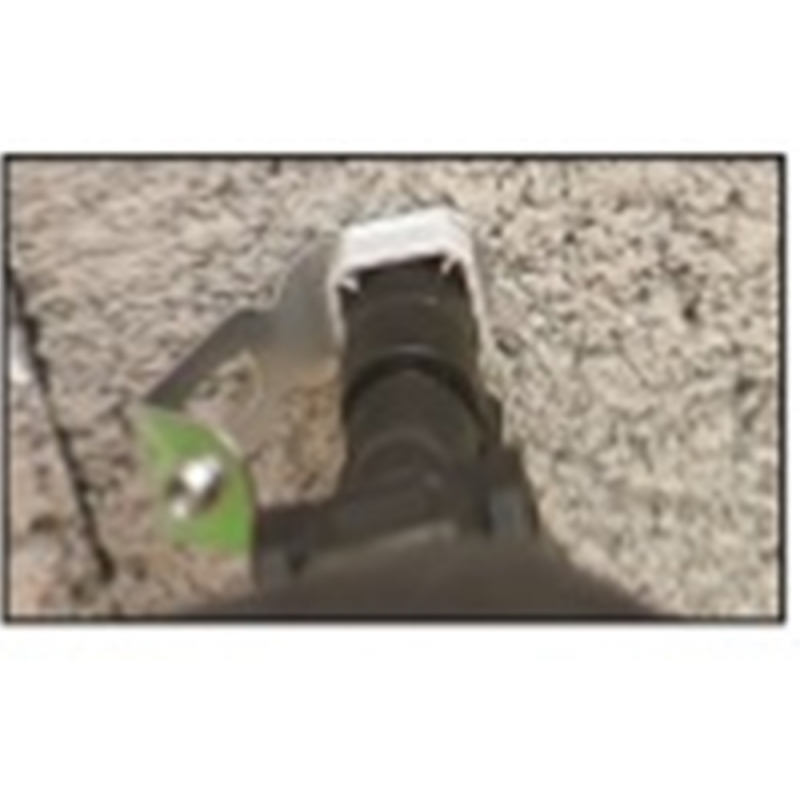

APOLO accessory with threaded nut for fixing with gas nailer. Installs in 10 seconds. Easy to fix on roof when clipping the plastic part in the nailer's mouth. Fixation with most nailers: BEA, SPIT, HILTI(GX100), W'rth, Berner, Spit, Powers. Ideal for lowering rod.
Installation speed 10 seconds
Fire-approved fixation when combined with XHA nail

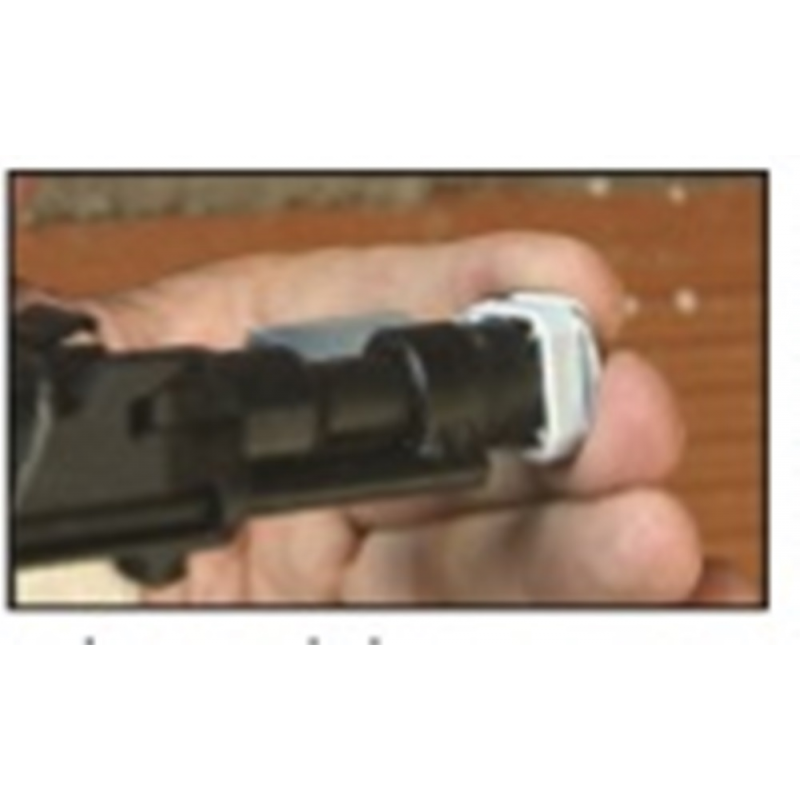

HDPE clip (patented) allows a firm hold in the mouth of the nailer
Recommended load in concrete 30 Kg
Recommended load with 22 mm steel beam nails 20 Kg
Recommended load with 22 mm nails in concrete block 25 Kg
Lower rod
false ceiling
Beam
Concrete
Concrete block
Solid brick
| Denom. | Reference | Diameter (mm) | Coating | Units x | Type of packaging |
|---|---|---|---|---|---|
| ATV 6 | 9TV6 | 6 | Galvanized | 100 | Box |
| ATV 5 | 9TV5 | 5 | Galvanized | 100 | Box |
| ATV 4 | 9TV4 | 4 | Galvanized | 100 | Box |
Data sheet
Specific References
Zinc-plated APOLO steel nails reinforced with stretch marks to improve grip on very hard materials. Each 1000-nail steel case includes a gas cartridge for more than 1,200 rounds. Gas load compatible with other nailers in the same category.
Galvanized steel hook swing. Includes wide washer and nut. Light fixation for false ceilings
The NP shock plug from Apollo MEA is suitable for quick assembly of gutters, slats, preframes, profiles, etc. The exact match between plug and screw offers high clamping values. Reinforcement at the head of the plug to prevent it from breaking when inserting the screw. Screws with PZ imprint that allows to unscrew and remove the fixation. It withstands temperatures between -40oC to +80oC. It is presebta in acerp and A2 stainless steel materials. In box format and in blister.
APOLO reinforced clamp M8+M10, nut with cross welding. Hexagonal screw with imprint ph+slot and PVC washer to prevent falling screws during clamp opening. Made of zinc-plated steel.
Accessory APOLO metal staple is fixed to the profile and then nailed with gas nailer. It can be fixed with any gas nailer.
APOLO reinforced clamp M8+M10, nut with cross welding. Hexagonal screw with imprint ph+slot and PVC washer to prevent falling screws during clamp opening. Made of zinc-plated steel.
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
APOLO plastic clip, for cables and hoses. High tenacity steel nail. Reusable plastic box
Open APOLO multiclip nylon clamp with side joint for serial mounting. It can be fixed to profile E2000PB, E2000PG and 1000PVC, in addition to, with NP4x25 shock plug, with FX plug 6 and screw 4,5x35/45. 4.5 mm through hole
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
APOLO reinforced clamp M8+M10, nut with cross welding. Hexagonal screw with imprint ph+slot and PVC washer to prevent falling screws during clamp opening. Made of zinc-plated steel.
The metal anchor with Apollo MEA DT expander jacket and hex screw is suitable for through bindings in medium loads. CE approved anchorage for non-cracked concrete. Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole. In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone.
