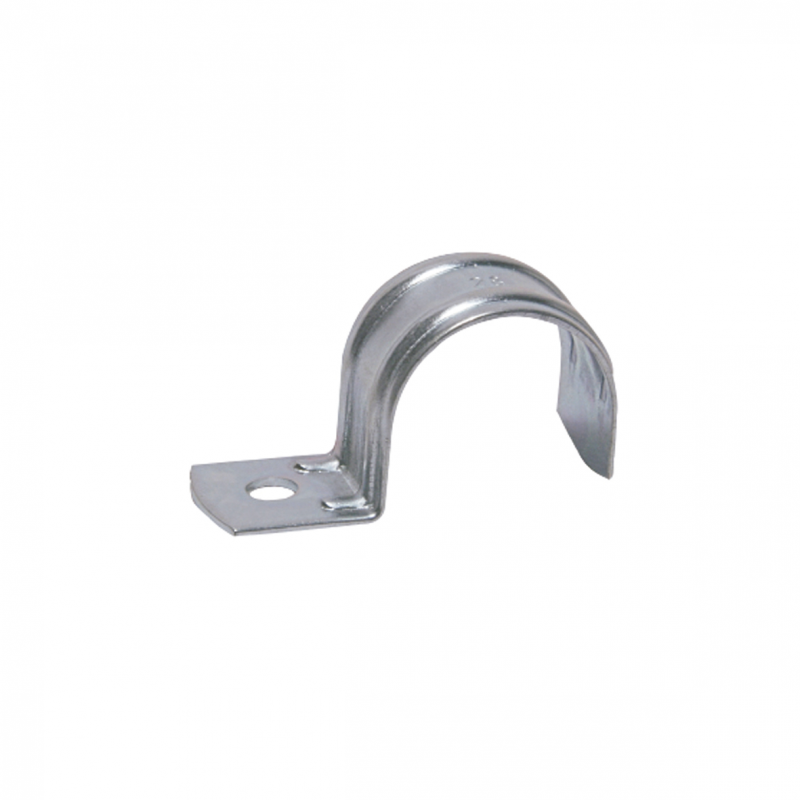

APOLO steel metal clip reinforced with two nerves to the base..../p>
Double nerve that reaches the base, offering greater resistance to start-up
High corrosion resistance zinc-plated steel
Direct fixation with bump plug or DA metal heel
Through hole of 6.5 mm/p>
Supports recommended loads up to 12 Kg safety factor included.
cable
PVC tube
Multilayer tube
Steel tube
Plastic tube
Beam
Concrete
Concrete block
Solid brick

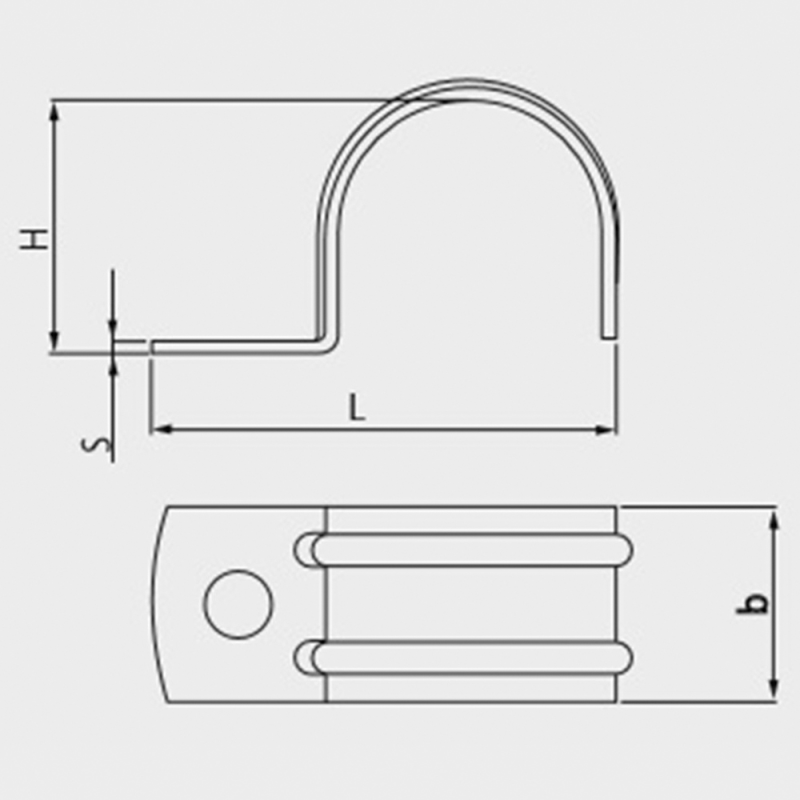

| Denom. | Reference | Diameter (mm) | Length (mm) | Tube diameter to be fixed (mm) | Height (mm) | Clamp Thickness (mm) | Units x |
|---|---|---|---|---|---|---|---|
| F 8 | 98F | 8 | 23.8 | 8 | 9.4 | 0.8 | 100 |
| F 22 | 922F | 22 | 40.7 | 22 | 23.9 | 1.2 | 100 |
| F 8 | 96F | 6 | 21.8 | 6 | 7.4 | 0.8 | 100 |
| F 63 | 963F | 63 | 84.5 | 63 | 65.3 | 1.5 | 25 |
| F 50 | 950F | 50 | 71.5 | 50 | 52.3 | 1.5 | 50 |
| F 40 | 940F | 40 | 61.5 | 40 | 42.3 | 1.5 | 50 |
| F 32 | 932F | 32 | 53.5 | 32 | 34.3 | 1.5 | 100 |
| F 28 | 928F | 28 | 46.7 | 28 | 29.9 | 1.2 | 100 |
| F 26 | 926F | 26 | 44.7 | 26 | 27.9 | 1.2 | 100 |
| F 25 | 925F | 25 | 437 | 25 | 26.9 | 1.2 | 100 |
| F 20 | 920F | 20 | 38.7 | 20 | 21.9 | 1.2 | 100 |
| F 18 | 918F | 18 | 35.5 | 18 | 19.6 | 1 | 100 |
| F 16 | 916F | 16 | 33.5 | 16 | 17.6 | 1 | 100 |
| F 14 | 914F | 14 | 31.5 | 14 | 15.6 | 1 | 100 |
| F 12 | 912F | 12 | 27.8 | 12 | 13.4 | 0.8 | 100 |
| F 10 | 910F | 10 | 26 | 10 | 11.4 | 0.8 | 100 |
Data sheet
