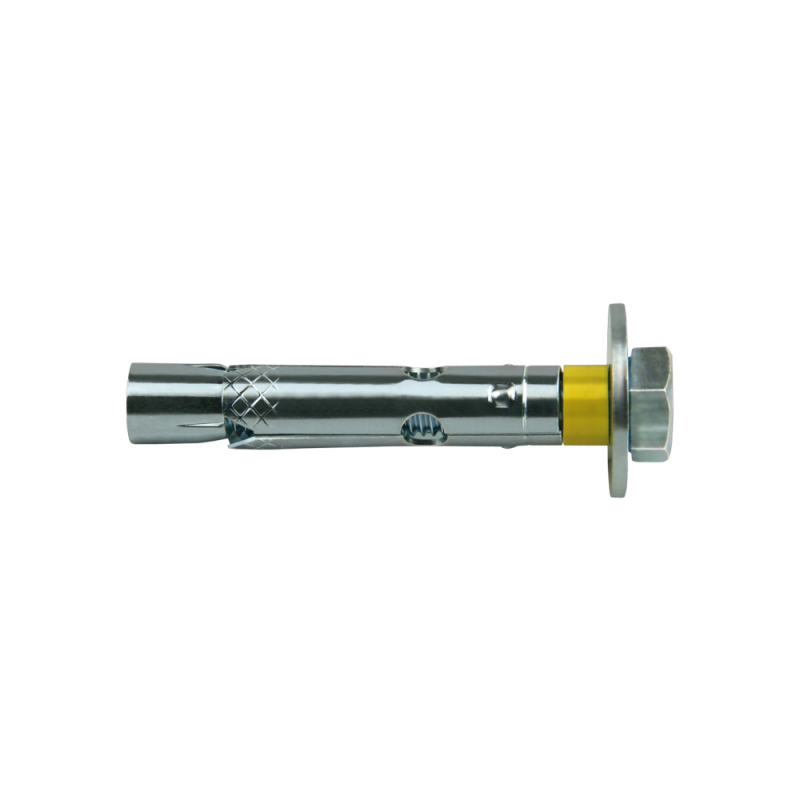

The metal anchor with Apollo MEA DT expander jacket and hex screw is suitable for through bindings in medium loads. CE approved anchorage for non-cracked concrete. Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole. In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone.
The metal anchor with expander jacket and hexagonal screw is suitable for through bindings in medium loads
Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole
In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone
It comes in a professional box and mini boxes for sporadic consumption./p>
Metal profiles
Railings
Streetlights
Concrete
Solid brick
eta_apolomea_dnbolt_eta_15-0508_en.pdf
ddp_dnbolt_sleeve_anchor_15-0508_en.pdf

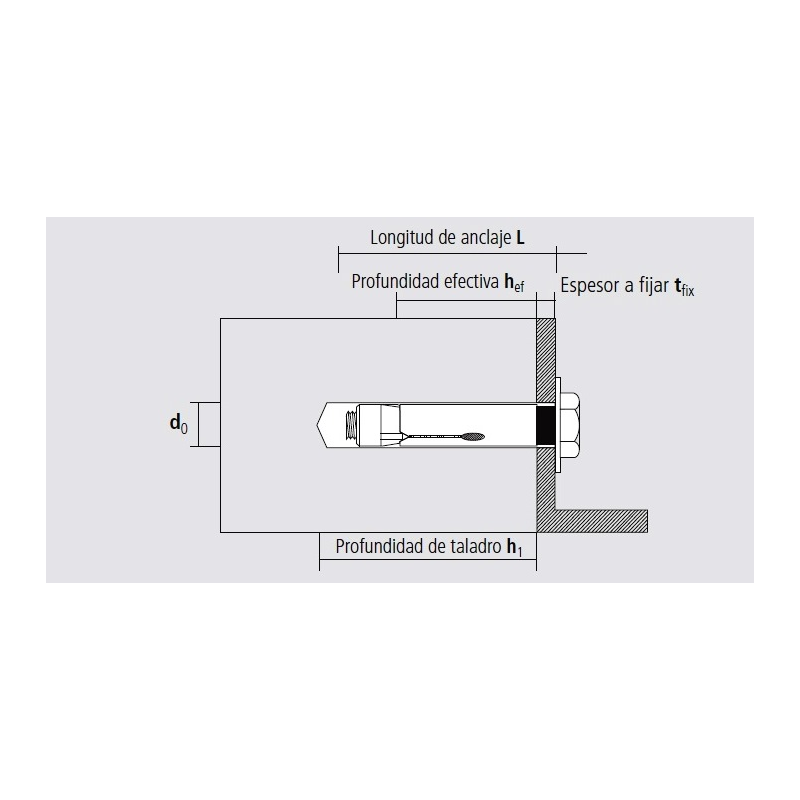

| Denom. | Reference | Hole Diameter (mm) | Length (mm) | Anchor Depth (mm) | Hole Depth (mm) | Thickness to be fixed (mm) | Units x |
|---|---|---|---|---|---|---|---|
| DT 26-130 | 926130DT | 26 | 130 | 80 | 105 | 30 | 8 |
| DT 21-110 | 921110DT | 21 | 110 | 65 | 85 | 30 | 10 |
| DT 16-110 | 916110DT | 16 | 110 | 55 | 75 | 40 | 25 |
| DT 16-80 | 91680DT | 16 | 80 | 55 | 55 | 10 | 40 |
| DT 14-100 | 914100DT | 14 | 100 | 43 | 70 | 40 | 50 |
| DT 14-70 | 91470DT | 14 | 70 | 43 | 70 | 10 | 50 |
| DT 12-100 | 912100DT | 12 | 100 | 43 | 70 | 40 | 50 |
| DT 12-70 | 91270DT | 12 | 70 | 43 | 70 | 10 | 50 |
| DT 11-80 | 91180DT | 11 | 80 | 37 | 55 | 30 | 75 |
| DT 11-60 | 91160DT | 11 | 60 | 37 | 55 | 10 | 100 |
| DT 10-80 | 91080DT15 | 10 | 80 | 37 | 55 | 30 | 15 |
| DT 10-80 | 91080DT | 10 | 80 | 37 | 55 | 30 | 100 |
| DT 10-60 | 91060DT20 | 10 | 60 | 37 | 55 | 10 | 20 |
| DT 10-60 | 91060DT | 10 | 60 | 37 | 55 | 10 | 100 |
| DT 9-60 | 9960DT | 9 | 60 | 30 | 45 | 20 | 150 |
| DT 9-45 | 9945DT | 9 | 45 | 30 | 45 | 5 | 250 |
| DT 8-60 | 9860DT30 | 8 | 60 | 30 | 45 | 20 | 30 |
| DT 8-60 | 9860DT | 8 | 60 | 30 | 45 | 20 | 200 |
| DT 8-45 | 9845DT50 | 8 | 45 | 30 | 45 | 5 | 50 |
| DT 8-45 | 9845DT | 8 | 45 | 30 | 45 | 5 | 250 |
Data sheet
Specific References
APOLO clamp to fix tubes in parallel, reducing the distance between the tubes (space saving). It facilitates the fixing of taped tubes by not having to cut it at the attachment points. Mounting with 2000PG and 2000PB profiles. Approved Applus.
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
APOLO plastic clip, for cables and hoses. High tenacity steel nail. Reusable plastic box
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
APOLO reinforced clamp M8+M10, nut with cross welding. Hexagonal screw with imprint ph+slot and PVC washer to prevent falling screws during clamp opening. Made of zinc-plated steel.
M6 metal APOLO clamp with two screws. Side nail specially designed for easy pre-installation, allows to open and close the clamp without the need to completely unscrew the side screw. Available in belted and bicro-matted. It comes in a box and in a self-service plastic bag.
APOLO steel metal clip reinforced with two nerves to the base..../p>
Apolo MEA GKD nylon stud is fixed directly by not needing pre-drill. It is easy and quick to install on plasterboard for light loads. Manufactured with 30% fiberglass quickly drill the plasterboard. Used with wood screws in diameter from 3.0 to 4.5 mm. The screw can be longer than the plug as the screw can drill and pierces the plug.
APOLO accessory with threaded nut for fixing with gas nailer. Installs in 10 seconds. Easy to fix on roof when clipping the plastic part in the nailer's mouth. Fixation with most nailers: BEA, SPIT, HILTI(GX100), W'rth, Berner, Spit, Powers. Ideal for lowering rod.
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
High performance steel nails for hard materials that ensure high productivity in the installation.. Zinc-plated APOLO steel nails reinforced with stretch marks to improve grip on very hard materials. Each 1000-nail steel case includes a gas cartridge for more than 1,200 rounds. Gas load compatible with other nailers in the same category.
APOLO plastic clip, for cables and hoses. High tenacity steel nail. Reusable plastic box
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
APOLO double screw special for nylon plug. Head diameter designed to fix staples. Deep imprint combined PZ plus groove. Reinforcement under the head with a double cone for greater fixation strength
