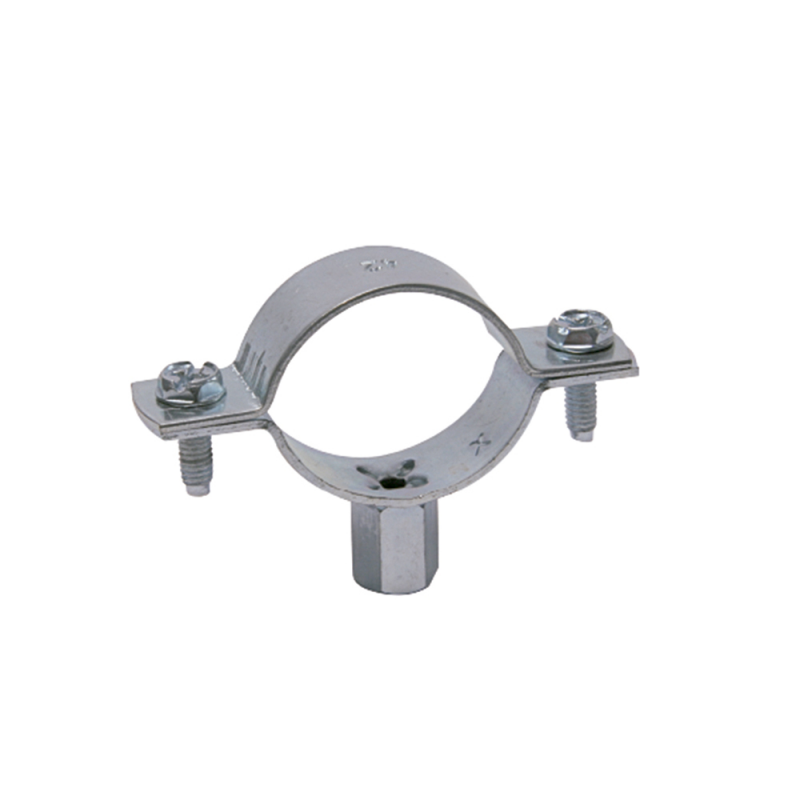

APOLO reinforced clamp M8+M10, nut with cross welding. Hexagonal screw with imprint ph+slot and PVC washer to prevent falling screws during clamp opening. Made of zinc-plated steel.
| Denom. | Reference | Diameter (mm) | Length (mm) | Tube diameter to be fixed (mm) | Height (mm) | Clamp Thickness (mm) | Units x |
|---|---|---|---|---|---|---|---|
| R 200 | 9200R | 200 | 242.5 | 200 | 227.5 | 2.3 | 40 |
| R 160 | 9160R | 160 | 202.5 | 160 | 187.5 | 2.3 | 40 |
| R 140 | 9140R | 140 | 178.5 | 140 | 163.5 | 2.3 | 50 |
| R 125 | 9125R | 125 | 166.5 | 125 | 151.5 | 2.3 | 50 |
| R 110 | 9110R | 110 | 148.5 | 110 | 133.5 | 1.8 | 50 |
| R 100 | 9100R | 100 | 140.5 | 100 | 125.5 | 1.8 | 50 |
| R 90 | 990R | 90 | 127.5 | 90 | 112.5 | 1.8 | 50 |
| R 75 | 975R | 75 | 115.5 | 75 | 100.5 | 1.8 | 50 |
| R 63 | 963R | 63 | 99.5 | 63 | 84.5 | 1.8 | 50 |
| R 60 | 960R | 60 | 93.5 | 60 | 78.5 | 1.8 | 50 |
| R 50 | 950R | 50 | 86.5 | 50 | 71.5 | 1.8 | 100 |
| R 40 | 940R | 40 | 78.5 | 40 | 63.5 | 1.8 | 100 |
| R 35 | 935R | 35 | 72.5 | 35 | 57.5 | 1.8 | 100 |
| R 28 | 928R | 28 | 65.5 | 28 | 50.5 | 1.8 | 100 |
| R 22 | 922R | 22 | 60.5 | 22 | 45.5 | 1.8 | 100 |
| R 18 | 918R | 18 | 54.5 | 18 | 39.5 | 1.8 | 100 |
Data sheet
Specific References
APOLO plastic clip, for cables and hoses. High tenacity steel nail. Reusable plastic box
The metal anchor with Apollo MEA DT expander jacket and hex screw is suitable for through bindings in medium loads. CE approved anchorage for non-cracked concrete. Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole. In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone.
High performance steel nails for hard materials that ensure high productivity in the installation.. Zinc-plated APOLO steel nails reinforced with stretch marks to improve grip on very hard materials. Each 1000-nail steel case includes a gas cartridge for more than 1,200 rounds. Gas load compatible with other nailers in the same category.
Zinc-plated APOLO steel nails reinforced with stretch marks to improve grip on very hard materials. Each 1000-nail steel case includes a gas cartridge for more than 1,200 rounds. Gas load compatible with other nailers in the same category.
Open APOLO multiclip nylon clamp with side joint for serial mounting. It can be fixed to profile E2000PB, E2000PG and 1000PVC, in addition to, with NP4x25 shock plug, with FX plug 6 and screw 4,5x35/45. 4.5 mm through hole
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
APOLO threaded rod according to DIN 975 steel class 4.8 zinc-length one meter in length.
M6 metal APOLO clamp with two screws. Side nail specially designed for easy pre-installation, allows to open and close the clamp without the need to completely unscrew the side screw. Available in belted and bicro-matted. It comes in a box and in a self-service plastic bag.
APOLO clamp to fix tubes in parallel, reducing the distance between the tubes (space saving). It facilitates the fixing of taped tubes by not having to cut it at the attachment points. Mounting with 2000PG and 2000PB profiles. Approved Applus.
Abrazadera APOLO reforzada M8+M10, con soldadura en cruz y tornillo hexagonal impronta ph+ranura con arandela imperdible
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
APOLO threaded rod according to DIN 975 steel class 4.8 zinc-length one meter in length.
APOLO plastic clip, for cables and hoses. High tenacity steel nail. Reusable plastic box
