Metal screw anchor hexagonal screw DTD8-L M6x60 CINC.

Referencia: 0048000053 Categoría: Fixings and Screws Marca: CELO APOLO

The metal anchor with Apollo MEA DT expander jacket and hex screw is suitable for through bindings in medium loads. CE approved anchorage for non-cracked concrete. Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole. In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone.

Quantity
Add to wishlist

The metal anchor with expander jacket and hexagonal screw is suitable for through bindings in medium loads

Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole

In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone

It comes in a professional box and mini boxes for sporadic consumption./p>

Application area

Metal profiles

Railings

Streetlights

Suitable for base materials such as:

Concrete

Solid brick



Downloads:

l_dnbolt_load_table_en.pdf



tds_dnbolt.pdf



eta_apolomea_dnbolt_eta_15-0508_en.pdf



ddp_dnbolt_sleeve_anchor_15-0508_en.pdf

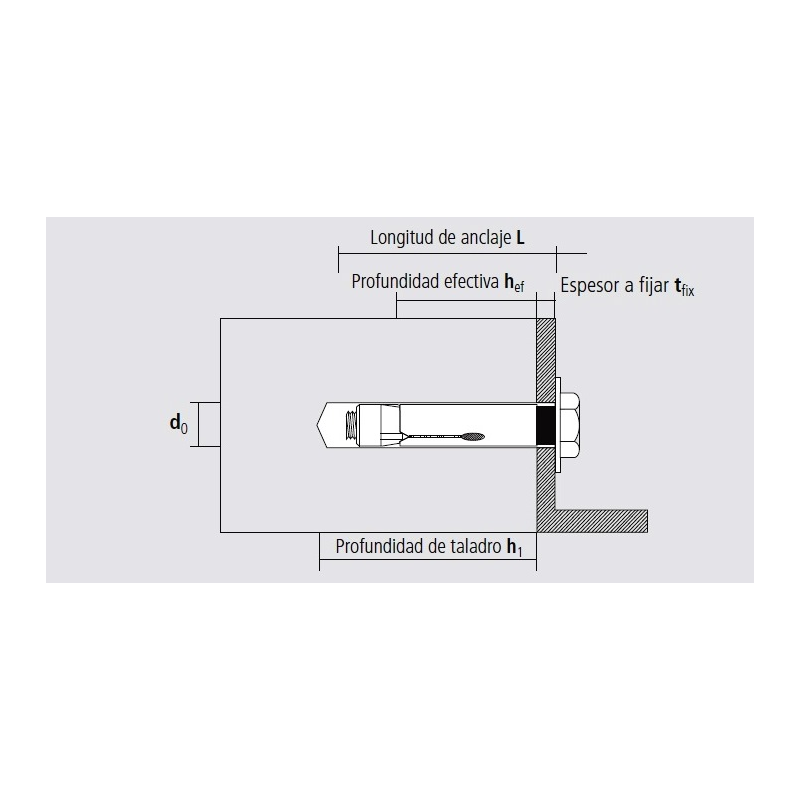

Denom.ReferenceHole Diameter (mm)Length (mm)Anchor Depth (mm)Hole Depth (mm)Thickness to be fixed (mm)Units x
DT 26-130 926130DT 26 130 80 105 30 8
DT 21-110 921110DT 21 110 65 85 30 10
DT 16-110 916110DT 16 110 55 75 40 25
DT 16-80 91680DT 16 80 55 55 10 40
DT 14-100 914100DT 14 100 43 70 40 50
DT 14-70 91470DT 14 70 43 70 10 50
DT 12-100 912100DT 12 100 43 70 40 50
DT 12-70 91270DT 12 70 43 70 10 50
DT 11-80 91180DT 11 80 37 55 30 75
DT 11-60 91160DT 11 60 37 55 10 100
DT 10-80 91080DT15 10 80 37 55 30 15
DT 10-80 91080DT 10 80 37 55 30 100
DT 10-60 91060DT20 10 60 37 55 10 20
DT 10-60 91060DT 10 60 37 55 10 100
DT 9-60 9960DT 9 60 30 45 20 150
DT 9-45 9945DT 9 45 30 45 5 250
DT 8-60 9860DT30 8 60 30 45 20 30
DT 8-60 9860DT 8 60 30 45 20 200
DT 8-45 9845DT50 8 45 30 45 5 50
DT 8-45 9845DT 8 45 30 45 5 250
0048000053

Data sheet

Type Fixation
Tornilleria
