Abrazadera APOLO reforzada M8+M10, con soldadura en cruz y tornillo hexagonal impronta ph+ranura con arandela imperdible
Abrazadera reforzada M8+M10
Soldadura en cruz
Tornillo M6x20 hexagonal impronta ph+ranura
Arandela para evitar que el tornillo caiga
Resistencia 150 Kg hasta Ø100
Resistencia 200 Kg hasta Ø215

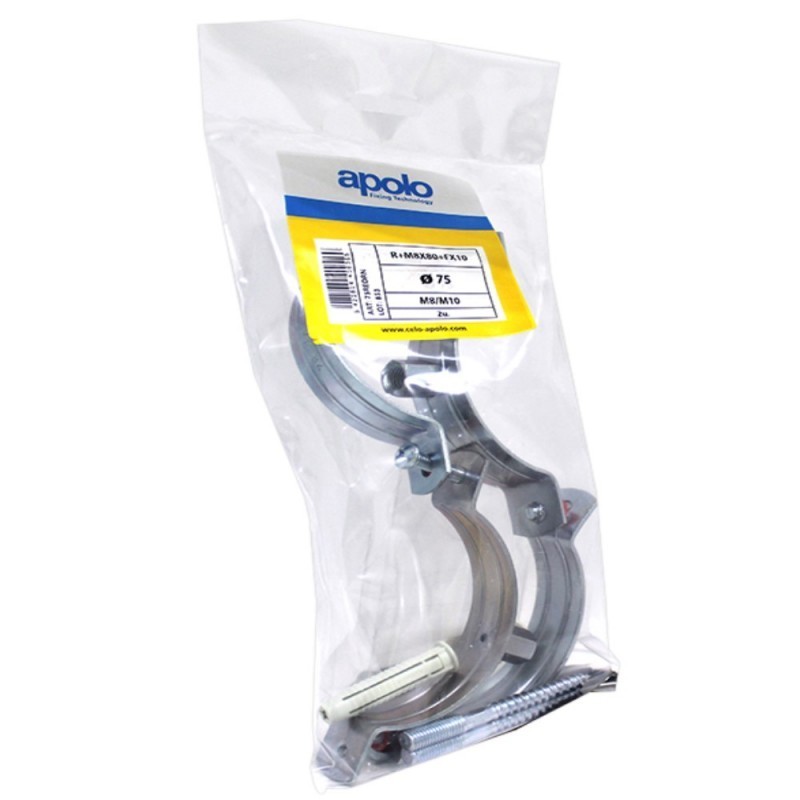

La bolsa contiene 2 abrazaderas, 2 espárragos roscados M8xM80, y tacos de nylon FX ø10
Tubos multicapa
Tubos de acero Tubos de PVC Tubos de cobre
Varilla roscada
Tirafondo
Espárrago roscado
Espárrago perfil
Tornillo anclaje directo
| Denom. | Referencia | Diámetro (mm) | Longitud (mm) | Diámetro tubo a fijar (mm) | Altura (mm) | Grosor de la abrazadera (mm) |
|---|---|---|---|---|---|---|
| R 90 | 90REDRN | 90 | 127,5 | 90 | 112,5 | 1,8 |
| R 75 | 75REDRN | 75 | 115,5 | 75 | 100,5 | 1,8 |
| R 60 | 60REDRN | 60 | 93,5 | 60 | 78,5 | 1,8 |
| R 50 | 50REDRN | 50 | 86,5 | 50 | 71,5 | 1,8 |
| R 40 | 40REDRN | 40 | 78,5 | 40 | 63,5 | 1,8 |
| R 35 | 35REDRN | 35 | 72,5 | 35 | 57,5 | 1,8 |
| R 28 | 28REDRN | 28 | 65,5 | 28 | 50,5 | 1,8 |
| R 22 | 22REDRN | 22 | 60,5 | 22 | 45,5 | 1,8 |
| R 160 | 160REDRN | 160 | 202,5 | 160 | 187,5 | 2,3 |
| R 140 | 140REDRN | 140 | 178,5 | 140 | 163,5 | 2,3 |
| R 125 | 125REDRN | 125 | 166,5 | 125 | 151,5 | 2,3 |
| R 110 | 110REDRN | 110 | 148,5 | 110 | 133,5 | 1,8 |
| R 18 | 18REDRN | 18 | 54,5 | 18 | 39,5 | 1,8 |
Data sheet
Specific References
Accessory APOLO metal staple is fixed to the profile and then nailed with gas nailer. It can be fixed with any gas nailer.
Zinc-plated APOLO steel nails reinforced with stretch marks to improve grip on very hard materials. Each 1000-nail steel case includes a gas cartridge for more than 1,200 rounds. Gas load compatible with other nailers in the same category.
APOLO plastic clip, for cables and hoses. High tenacity steel nail. Reusable plastic box
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
Open APOLO multiclip nylon clamp with side joint for serial mounting. It can be fixed to profile E2000PB, E2000PG and 1000PVC, in addition to, with NP4x25 shock plug, with FX plug 6 and screw 4,5x35/45. 4.5 mm through hole
APOLO steel metal clip reinforced with two nerves to the base..../p>
APOLO plastic clip, for cables and hoses. High tenacity steel nail. Reusable plastic box
Accessory APOLO metal staple is fixed to the profile and then nailed with gas nailer. It can be fixed with any gas nailer.
APOLO reinforced clamp M8+M10, nut with cross welding. Hexagonal screw with imprint ph+slot and PVC washer to prevent falling screws during clamp opening. Made of zinc-plated steel.
The metal anchor with Apollo MEA DT expander jacket and hex screw is suitable for through bindings in medium loads. CE approved anchorage for non-cracked concrete. Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole. In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone.
Open APOLO multiclip nylon clamp with side joint for serial mounting. It can be fixed to profile E2000PB, E2000PG and 1000PVC, in addition to, with NP4x25 shock plug, with FX plug 6 and screw 4,5x35/45. 4.5 mm through hole
