APOLO reinforced clamp M8+M10, nut with cross welding. Hexagonal screw with imprint ph+slot and PVC washer to prevent falling screws during clamp opening. Made of zinc-plated steel.
| Denom. | Reference | Diameter (mm) | Length (mm) | Tube diameter to be fixed (mm) | Height (mm) | Clamp Thickness (mm) | Units x |
|---|---|---|---|---|---|---|---|
| R 200 | 9200R | 200 | 242.5 | 200 | 227.5 | 2.3 | 40 |
| R 160 | 9160R | 160 | 202.5 | 160 | 187.5 | 2.3 | 40 |
| R 140 | 9140R | 140 | 178.5 | 140 | 163.5 | 2.3 | 50 |
| R 125 | 9125R | 125 | 166.5 | 125 | 151.5 | 2.3 | 50 |
| R 110 | 9110R | 110 | 148.5 | 110 | 133.5 | 1.8 | 50 |
| R 100 | 9100R | 100 | 140.5 | 100 | 125.5 | 1.8 | 50 |
| R 90 | 990R | 90 | 127.5 | 90 | 112.5 | 1.8 | 50 |
| R 75 | 975R | 75 | 115.5 | 75 | 100.5 | 1.8 | 50 |
| R 63 | 963R | 63 | 99.5 | 63 | 84.5 | 1.8 | 50 |
| R 60 | 960R | 60 | 93.5 | 60 | 78.5 | 1.8 | 50 |
| R 50 | 950R | 50 | 86.5 | 50 | 71.5 | 1.8 | 100 |
| R 40 | 940R | 40 | 78.5 | 40 | 63.5 | 1.8 | 100 |
| R 35 | 935R | 35 | 72.5 | 35 | 57.5 | 1.8 | 100 |
| R 28 | 928R | 28 | 65.5 | 28 | 50.5 | 1.8 | 100 |
| R 22 | 922R | 22 | 60.5 | 22 | 45.5 | 1.8 | 100 |
| R 18 | 918R | 18 | 54.5 | 18 | 39.5 | 1.8 | 100 |
Data sheet
Specific References
APOLO reinforced clamp M8+M10, nut with cross welding. Hexagonal screw with imprint ph+slot and PVC washer to prevent falling screws during clamp opening. Made of zinc-plated steel.
Apolo MEA GKD nylon stud is fixed directly by not needing pre-drill. It is easy and quick to install on plasterboard for light loads. Manufactured with 30% fiberglass quickly drill the plasterboard. Used with wood screws in diameter from 3.0 to 4.5 mm. The screw can be longer than the plug as the screw can drill and pierces the plug.
Accessory APOLO metal staple is fixed to the profile and then nailed with gas nailer. It can be fixed with any gas nailer.
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
M6 metal APOLO clamp with two screws. Side nail specially designed for easy pre-installation, allows to open and close the clamp without the need to completely unscrew the side screw. Available in belted and bicro-matted. It comes in a box and in a self-service plastic bag.
APOLO plastic clip, for cables and hoses. High tenacity steel nail. Reusable plastic box
APOLO double screw special for nylon plug. Head diameter designed to fix staples. Deep imprint combined PZ plus groove. Reinforcement under the head with a double cone for greater fixation strength
Abrazadera APOLO reforzada M8+M10, con soldadura en cruz y tornillo hexagonal impronta ph+ranura con arandela imperdible

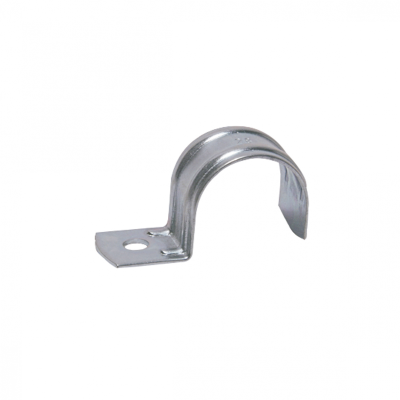

APOLO steel metal clip reinforced with two nerves to the base..../p>
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
M6 metal APOLO clamp with two screws. Side nail specially designed for easy pre-installation, allows to open and close the clamp without the need to completely unscrew the side screw. Available in belted and bicro-matted. It comes in a box and in a self-service plastic bag.
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
APOLO clamp to fix tubes in parallel, reducing the distance between the tubes (space saving). It facilitates the fixing of taped tubes by not having to cut it at the attachment points. Mounting with 2000PG and 2000PB profiles. Approved Applus.
Open APOLO multiclip nylon clamp with side joint for serial mounting. It can be fixed to profile E2000PB, E2000PG and 1000PVC, in addition to, with NP4x25 shock plug, with FX plug 6 and screw 4,5x35/45. 4.5 mm through hole
APOLO steel metal clip reinforced with two nerves to the base..../p>
