APOLO reinforced M8+M10 clamp, with cross welding and hexagonal screw imprint ph+ slot with unmissable washer
M8+M10 Reinforced Clamp
Cross welding
Screw M6x20 hexagonal imprint ph+slot
Washer to prevent screw from falling
Resistance 150 Kg up to 100!/p>
Resistance 200 Kg up to 215)/p>

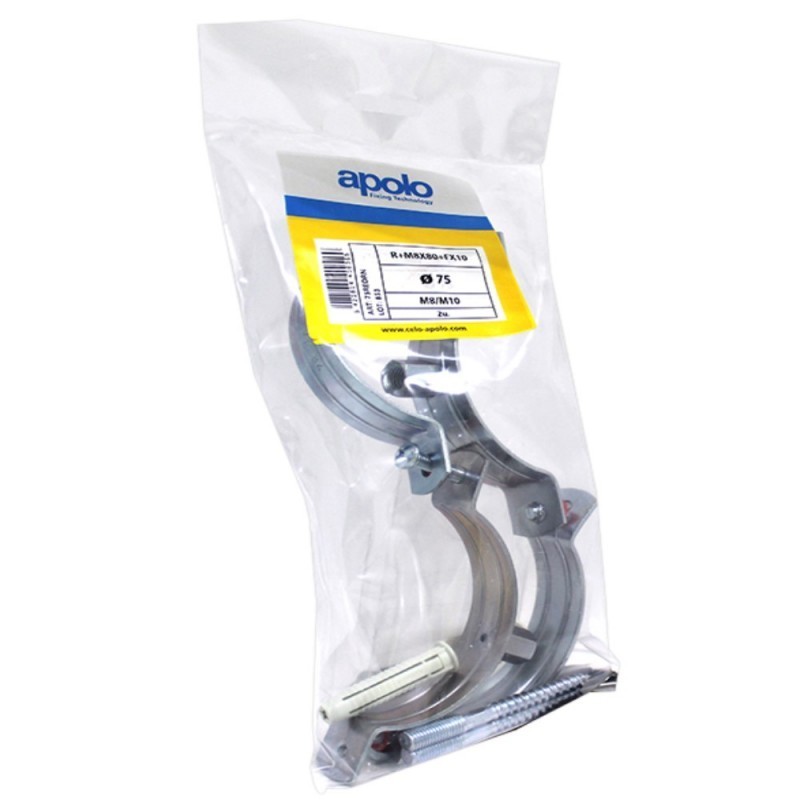

The bag contains 2 clamps, 2 M8xM80 threaded studs, and FX nylon studs.10
Multilayer tubes
Steel Pipes PVC pipes Copper pipes
Threaded rod
Tyrant
Threaded asparagus)/p>
Asparagus profile
Direct anchorscrew
| Denom. | Reference | Diameter (mm) | Length (mm) | Tube diameter to be fixed (mm) | Height (mm) | Clamp Thickness (mm) |
|---|---|---|---|---|---|---|
| R 90 | 90REDRN | 90 | 127.5 | 90 | 112.5 | 1.8 |
| R 75 | 75REDRN | 75 | 115.5 | 75 | 100.5 | 1.8 |
| R 60 | 60REDRN | 60 | 93.5 | 60 | 78.5 | 1.8 |
| R 50 | 50REDRN | 50 | 86.5 | 50 | 71.5 | 1.8 |
| R 40 | 40REDRN | 40 | 78.5 | 40 | 63.5 | 1.8 |
| R 35 | 35REDRN | 35 | 72.5 | 35 | 57.5 | 1.8 |
| R 28 | 28REDRN | 28 | 65.5 | 28 | 50.5 | 1.8 |
| R 22 | 22REDRN | 22 | 60.5 | 22 | 45.5 | 1.8 |
| R 160 | 160REDRN | 160 | 202.5 | 160 | 187.5 | 2.3 |
| R 140 | 140REDRN | 140 | 178.5 | 140 | 163.5 | 2.3 |
| R 125 | 125REDRN | 125 | 166.5 | 125 | 151.5 | 2.3 |
| R 110 | 110REDRN | 110 | 148.5 | 110 | 133.5 | 1.8 |
| R 18 | 18REDRN | 18 | 54.5 | 18 | 39.5 | 1.8 |
Data sheet
