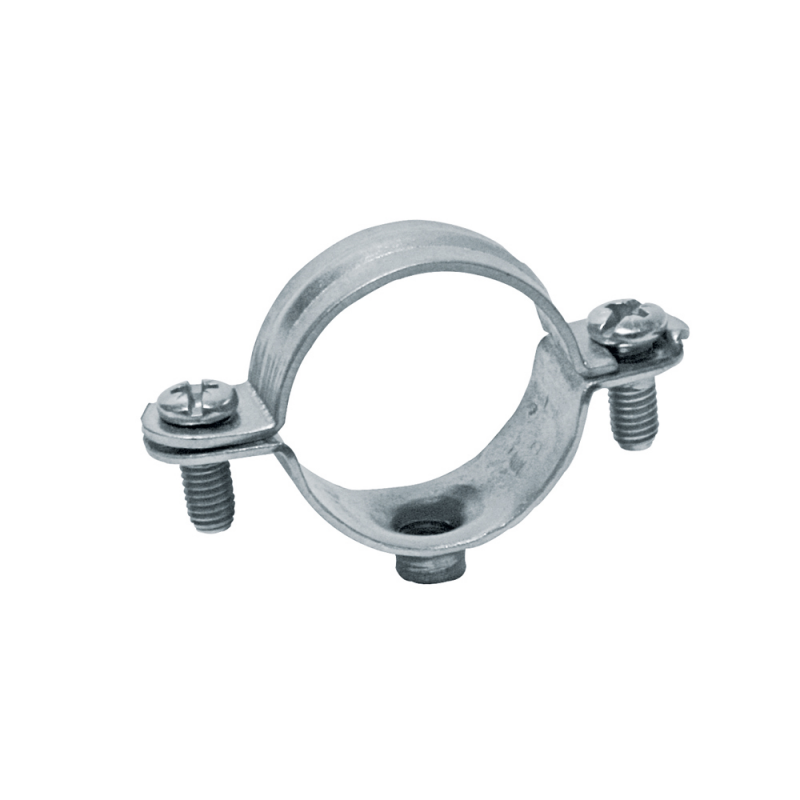

    Metal clamp M6 easy opening L 50 ACE. Zinc.
    Metal clamp M6 easy opening L 50 ACE. Zinc.

Metal clamp M6 easy opening L 50 ACE. Zinc.

Referencia: 0048050908 Categoría: Fixings and Screws Marca: CELO APOLO

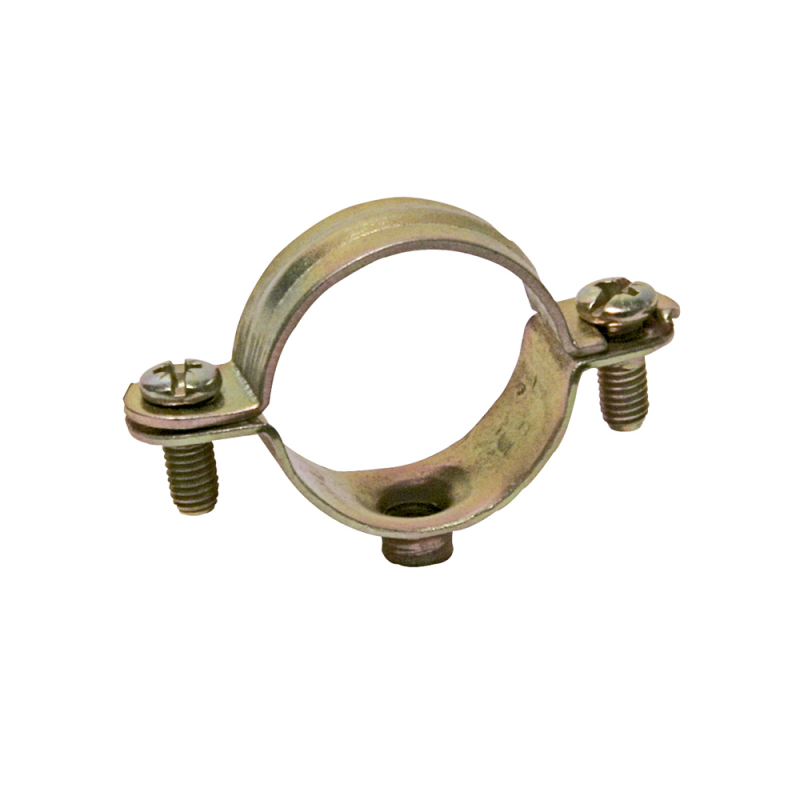

M6 metal APOLO clamp with two screws. Side nail specially designed for easy pre-installation, allows to open and close the clamp without the need to completely unscrew the side screw. Available in belted and bicro-matted. It comes in a box and in a self-service plastic bag.

Quantity
Add to wishlist

Side opening with the claw raised for easy pre-intalnation, allows to open and close the clamp without the need to completely unscrew the side screw

Central nerve for greater endurance

Recommended load safety factor included 50 kg

Application area

Water facilities

Heating facilities<3/p>

Electrical installations

Copper tubes

Metal tubes

Steel tubes

Suitable for base materials such as:

Threaded rod

Tirafondo

Threaded asparagus)/p>

Download:

tds_l.pd

emi_approval.pd

emi-approval.pdf



Denom.ReferenceDiameter (mm)Length (mm)CoatingTube diameter to be fixed (mm)Height (mm)Units x
L 63 9B63L 63 90 bichromatory 63 69.7 25
L 63 963L 63 90 Galvanized 63 69.7 25
L 60 960L 60 88 Galvanized 60 66.7 25
L 55 9B55L 55 82.8 bichromatory 55 60.7 25
L 50 950L 50 78 Galvanized 50 56.7 25
L 42 9B42L 42 68 bichromatory 42 49.2 50
L 40 940L 40 66 Galvanized 40 47.2 50
L 35 9B35L 35 61 bichromatory 35 42.2 50
L 32 932L 32 57 Galvanized 32 39.2 50
L 28 9B28L 28 53 bichromatory 28 35.2 100
L 26 926L 26 52 Galvanized 26 33.2 100
L 25 925L 25 51.5 Galvanized 25 32.2 100
L 22 9B22L 22 47 bichromatory 22 29.2 100
L 20 920L 20 45 Galvanized 20 27.2 100
L 18 9B18L 18 43 bichromatory 18 25.2 100
L 16 916L 16 41 Galvanized 16 23.7100
L 15 9B15L 15 40 bichromatory 15 22.7 100
L 14 914L 14 39 Galvanized 14 21.7 100
L 12 9B12L 12 37 bichromatory 12 19.7 100
L 12 912L 12 37 Galvanized 12 19.7 100
L 10 9B10L 10 35 bichromatory 10 17.7 100
L 10 910L 10 35 Galvanized 10 17.7 100
L 8 98L 8 33 Galvanized 8 15.7 100
L 6 96L 6 31 Galvanized 6 13.7 100
0048050908

Data sheet

Tube Section
50 m/m
Type Fixation
Clamps and Staples

Specific References

EAN13
8421814427913
