The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
High tensile strength due to its quadruple expansion
It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc.
It does not rotate when screwing due to its anti-rotation fins./p>
Necklace to prevent it from sneaking through the hole./p>
Made of high quality polyamide and durability
Supports temperatures between -40oC to +80oC
Lamps
Wall shelves
Cabinets
Curtain rails
Railings
TV stands

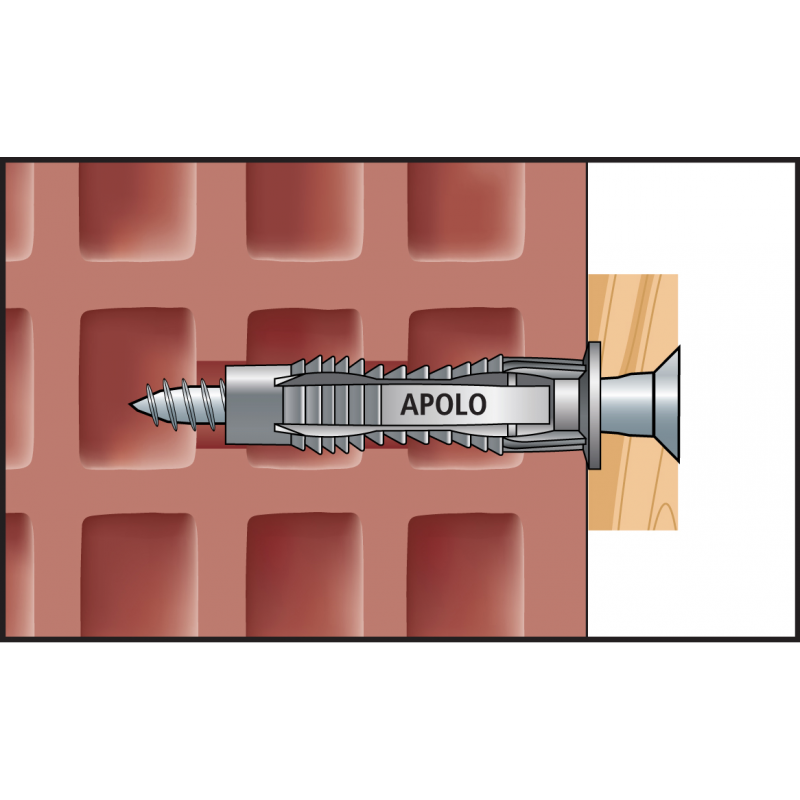

Concrete
Stone
Solid brick
Hollow brick

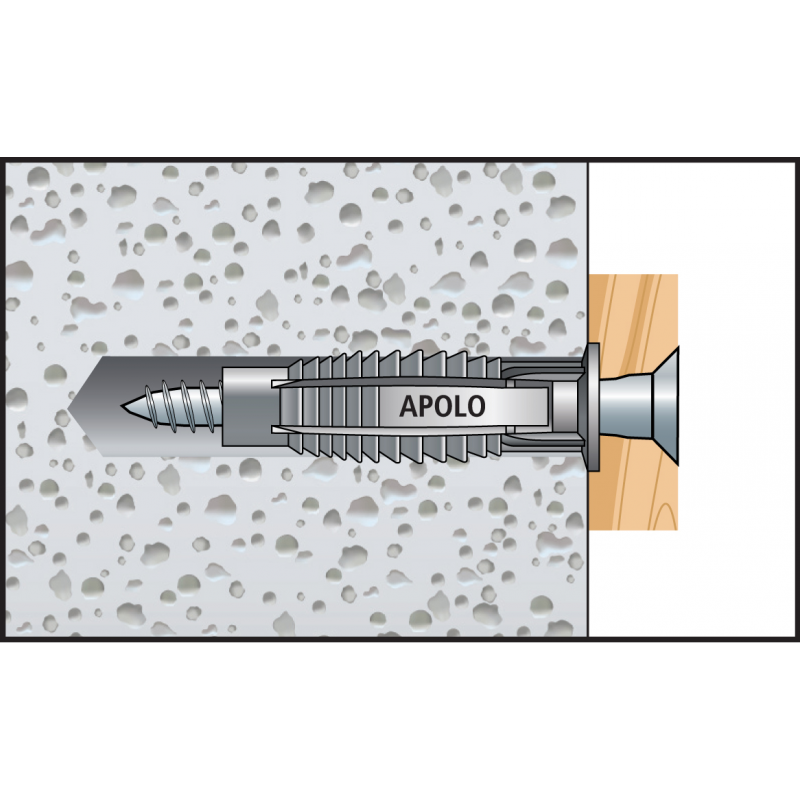

Porous concrete
Concrete block
Plasterboard plate
| Denom. | Reference | Hole Diameter (mm) | Length (mm) | Anchor Depth (mm) | Hole Depth (mm) | For screw (mm) | Units x |
|---|---|---|---|---|---|---|---|
| FX 10 | 910FXK | 10 | 50 | 50 | 70 | 6-8 | 25 |
| FX 8 | 98FXSZ | 8 | 40 | 40 | 55 | 4.5-6 | 50 |
| FX 6 | 96FXSZ | 6 | 30 | 30 | 40 | 3.5-5 | 50 |
Data sheet
Specific References
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
APOLO double screw special for nylon plug. Head diameter designed to fix staples. Deep imprint combined PZ plus groove. Reinforcement under the head with a double cone for greater fixation strength
Asparagus swingarm in galvanized steel. Includes wide washer and nut. Light fixation for false ceilings
Accessory APOLO metal staple is fixed to the profile and then nailed with gas nailer. It can be fixed with any gas nailer.
Open APOLO multiclip nylon clamp with side joint for serial mounting. It can be fixed to profile E2000PB, E2000PG and 1000PVC, in addition to, with NP4x25 shock plug, with FX plug 6 and screw 4,5x35/45. 4.5 mm through hole
APOLO base accessory black flange for fixing with gas nailer. Fixation with most nailers: BEA, SPIT, HILTI(GX100), W'rth, Berner, Spit, Powers. The basebrid is clipmed to the mouth of the gun. It can be used with any type of flange and is adjustable thanks to its 4 side openings.
Galvanized steel hook swing. Includes wide washer and nut. Light fixation for false ceilings
High performance steel nails for hard materials that ensure high productivity in the installation.. Zinc-plated APOLO steel nails reinforced with stretch marks to improve grip on very hard materials. Each 1000-nail steel case includes a gas cartridge for more than 1,200 rounds. Gas load compatible with other nailers in the same category.
Open APOLO multiclip nylon clamp with side joint for serial mounting. It can be fixed to profile E2000PB, E2000PG and 1000PVC, in addition to, with NP4x25 shock plug, with FX plug 6 and screw 4,5x35/45. 4.5 mm through hole
Open APOLO multiclip nylon clamp with side joint for serial mounting. It can be fixed to profile E2000PB, E2000PG and 1000PVC, in addition to, with NP4x25 shock plug, with FX plug 6 and screw 4,5x35/45. 4.5 mm through hole
M6 metal APOLO clamp with two screws. Side nail specially designed for easy pre-installation, allows to open and close the clamp without the need to completely unscrew the side screw. Available in belted and bicro-matted. It comes in a box and in a self-service plastic bag.
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
APOLO threaded rod according to DIN 975 steel class 4.8 zinc-length one meter in length.
The metal anchor with Apollo MEA DT expander jacket and hex screw is suitable for through bindings in medium loads. CE approved anchorage for non-cracked concrete. Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole. In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone.
The metal anchor with Apollo MEA DT expander jacket and hex screw is suitable for through bindings in medium loads. CE approved anchorage for non-cracked concrete. Cone with anti-spin fins for quick and safe expansion and shirt with anti-rotation bumps to prevent rotation in the hole. In addition, the shirt has been made of progressive chamflan to facilitate the expansion of the cone.
