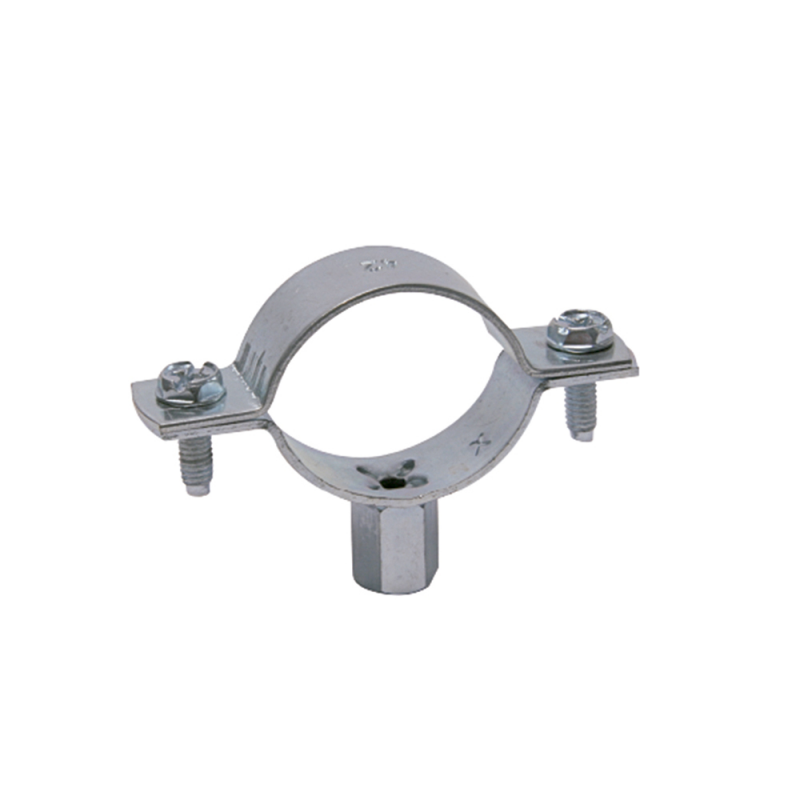

Abrazadera APOLO reforzada M8+M10, con soldadura en cruz y tornillo hexagonal impronta ph+ranura con arandela imperdible
Abrazadera reforzada M8+M10
Soldadura en cruz
Tornillo M6x20 hexagonal impronta ph+ranura
Arandela para evitar que el tornillo caiga
Resistencia 150 Kg hasta Ø100
Resistencia 200 Kg hasta Ø215

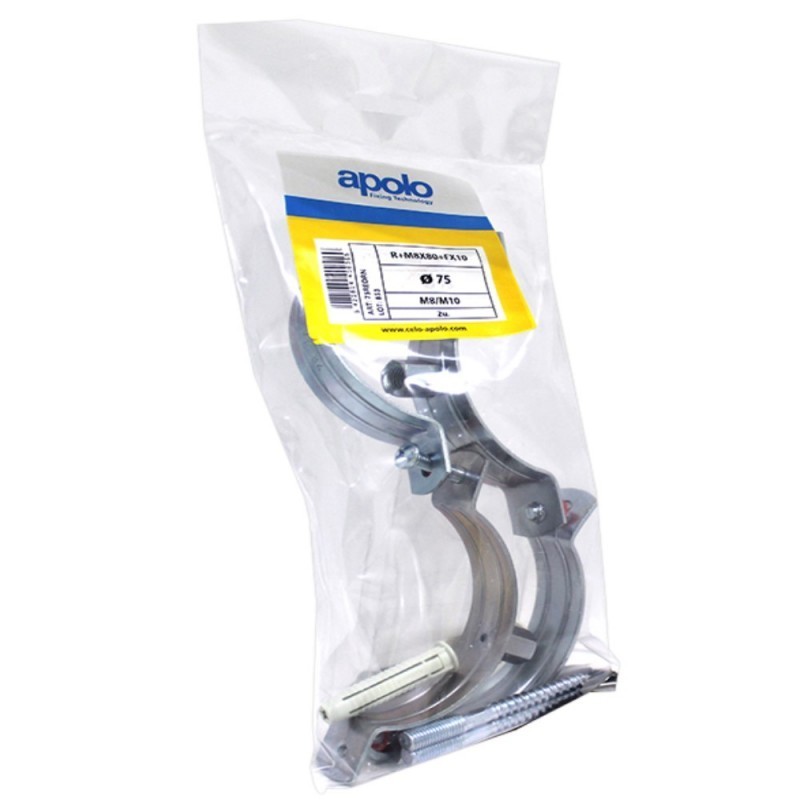

La bolsa contiene 2 abrazaderas, 2 espárragos roscados M8xM80, y tacos de nylon FX ø10
Tubos multicapa
Tubos de acero Tubos de PVC Tubos de cobre
Varilla roscada
Tirafondo
Espárrago roscado
Espárrago perfil
Tornillo anclaje directo
| Denom. | Referencia | Diámetro (mm) | Longitud (mm) | Diámetro tubo a fijar (mm) | Altura (mm) | Grosor de la abrazadera (mm) |
|---|---|---|---|---|---|---|
| R 90 | 90REDRN | 90 | 127,5 | 90 | 112,5 | 1,8 |
| R 75 | 75REDRN | 75 | 115,5 | 75 | 100,5 | 1,8 |
| R 60 | 60REDRN | 60 | 93,5 | 60 | 78,5 | 1,8 |
| R 50 | 50REDRN | 50 | 86,5 | 50 | 71,5 | 1,8 |
| R 40 | 40REDRN | 40 | 78,5 | 40 | 63,5 | 1,8 |
| R 35 | 35REDRN | 35 | 72,5 | 35 | 57,5 | 1,8 |
| R 28 | 28REDRN | 28 | 65,5 | 28 | 50,5 | 1,8 |
| R 22 | 22REDRN | 22 | 60,5 | 22 | 45,5 | 1,8 |
| R 160 | 160REDRN | 160 | 202,5 | 160 | 187,5 | 2,3 |
| R 140 | 140REDRN | 140 | 178,5 | 140 | 163,5 | 2,3 |
| R 125 | 125REDRN | 125 | 166,5 | 125 | 151,5 | 2,3 |
| R 110 | 110REDRN | 110 | 148,5 | 110 | 133,5 | 1,8 |
| R 18 | 18REDRN | 18 | 54,5 | 18 | 39,5 | 1,8 |
Data sheet
Specific References
APOLO plastic clip, for cables and hoses. High tenacity steel nail. Reusable plastic box
Open APOLO multiclip nylon clamp with side joint for serial mounting. It can be fixed to profile E2000PB, E2000PG and 1000PVC, in addition to, with NP4x25 shock plug, with FX plug 6 and screw 4,5x35/45. 4.5 mm through hole
APOLO plastic clip, for cables and hoses. High tenacity steel nail. Reusable plastic box
APOLO steel metal clip reinforced with two nerves to the base..../p>
APOLO double screw special for nylon plug. Head diameter designed to fix staples. Deep imprint combined PZ plus groove. Reinforcement under the head with a double cone for greater fixation strength
APOLO reinforced clamp M8+M10, nut with cross welding. Hexagonal screw with imprint ph+slot and PVC washer to prevent falling screws during clamp opening. Made of zinc-plated steel.
APOLO screw with head sleeve to lower rod and thread wood to fix nylon tack. Ideal for hollow fixing, in vault and block.
The Apollo MEA FX nylon heel achieves the highest grip on a variety of materials due to its quadruple expansion. It does not rotate when screwing due to its anti-rotation fins. The FX heel is fluted on all four sides to ensure greater grip, and with a collar to prevent it from sneaking through the hole. Manufactured in high quality and long lasting polyamide. It can be used with different types of screws, wood thread, slingshots, sheet metal screws, etc. Supports temperatures between -40oC to +80oC. Available in different packaging boxes, plastic canishes and blisters.
Galvanized steel hook swing. Includes wide washer and nut. Light fixation for false ceilings
Multiclip open APOLO clamp for gas nailer with side joint for serial mounting. Compatible ara gas washers AGII, SPIT, C3 andTrack-It, It can be fixed: to profile E2000PB, E2000PG and 1000PVC, with NP 4x25 shock plug, with fx plug 6 screw 4,5x35/45. Alignment marking
APOLO steel metal clip reinforced with two nerves to the base..../p>
Accessory APOLO metal staple is fixed to the profile and then nailed with gas nailer. It can be fixed with any gas nailer.
APOLO threaded rod according to DIN 975 steel class 4.8 zinc-length one meter in length.
APOLO steel metal clip reinforced with two nerves to the base..../p>
M6 metal APOLO clamp with two screws. Side nail specially designed for easy pre-installation, allows to open and close the clamp without the need to completely unscrew the side screw. Available in belted and bicro-matted. It comes in a box and in a self-service plastic bag.
