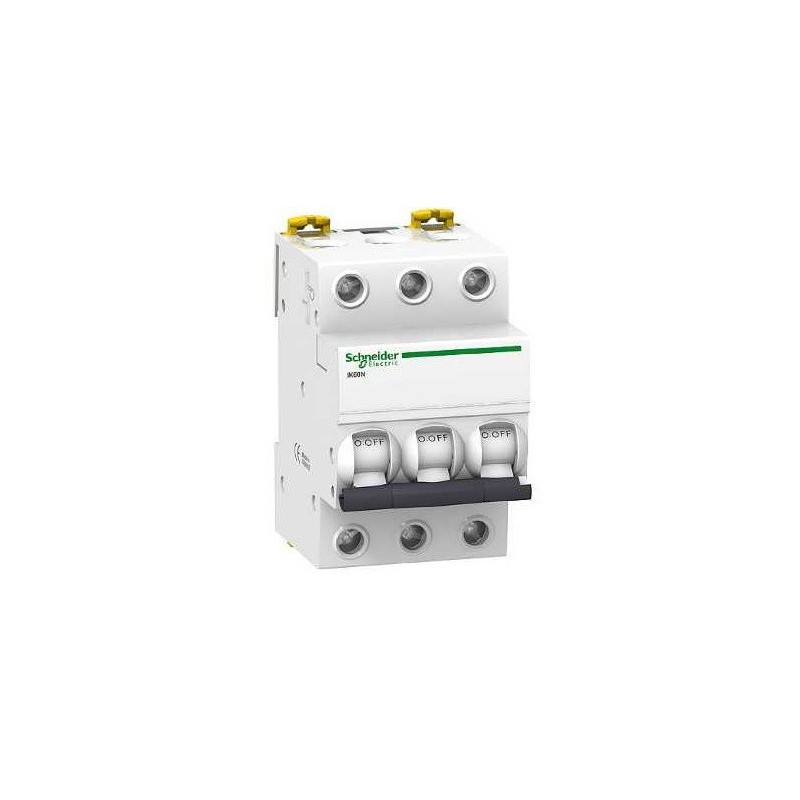

AUTOMATIC MAGNETOTERMICO A9K24340 3P 40A IK60N S CURVA-C SCHNEIDER
€47.31
VAT included
Automatic 40th magnetothermal ik60n 3 poles curve-c
MAGNETOTERMICO 3Pole CURVA-C IK60N
| Commercial status | Marketed |
| Device application ./span> | Distribution |
| Range | Acti 9 |
| Type of product or component | Miniature automatic switch .br /> |
| Product name | IK60 |
| Short device name | IK60N |
| Number of poles ./span> | 3p |
| Number of protected poles ./span> | 3 |
| Nominal current (In) | 6 A at 30 c .br /> |
| Network type | Ca |
| Shooting unit technology ./span> | Thermal-magnetic |
| Curve code | C |
| Cutting power | 6000 A Icn in accordance with EN/IEC 60898-1 - 400 V AC 50/60 Hz 6000 A Icn in accordance with EN/IEC 60898-1 - 230 V AC 50/60 Hz |
| Suitable for sectioning | Yes according to EN/IEC 60898-1 )br /> |
| Standards | EN/IEC 60898-1 |
| Certifications | Aenor |
Complementary
| Network frequency | 50/60 Hz |
| Magnetic link limit | 5...10 x In |
| [Ics] nominal service cutting power | 6000 A 100 % x Icu according to EN/IEC 60898-1 - 400 V AC 50/60 Hz 6000 A 100 % x Icu according to EN/IEC 60898-1 - 230 V AC 50/60 Hz |
| Limitation class ./span> | 3according to EN/IEC 60898-1 |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz in accordance with EN/IEC 60898-1 |
| [Uimp] rated voltage supported at impulse ./span> | 4 kV in accordance with EN/IEC 60898-1 |
| Type of control | Handle |
| Local signage ./span> | On/Off indication .br /> |
| Mounting mode | Clip-adjustable |
| Mounting bracket | DIN Rail |
| 9 mm steps | 6 |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 78.5 mm |
| Product weight | 300g |
| de colores | White |
| Mechanical endurance/span> | 20000 cycles |
| Electrical durability | 10000 cycles |
| Description of the locking options ./span> | Lock-lock closing device |
| Connections - terminals | Tunnel terminal, up or down Flexible wiring(s) 1...16 mm2 max Tunnel-type terminal, rigid up or down wired(s) 1...25 mm2 max |
| Cable length uncovered | 14 mm up or down |
| Tightening torque | 2 N.m up or down |
| Ground Leak Protection | Without |
Environment
| IP degree of protection i/span> | IP20 in accordance with IEC 60529 |
| degree of contamination | 2 in accordance with EN/IEC 60898-1 |
| Overvoltage category | span class'"level1>> III |
| > Ambient working temperature | -25...60 'C |
| > Ambient storage temperature | -40...85 'C |
0017189861
Data sheet
- Poles
- 3 Poles
- Amperage
- 40 Amp
- Brand
- Schneider
Specific References
- EAN13
- 3606480086915
